Clw 30tons LPG Gas Cylinder Tank 60000L Bulk Propane Storage Tank for Nigeria

Product Description

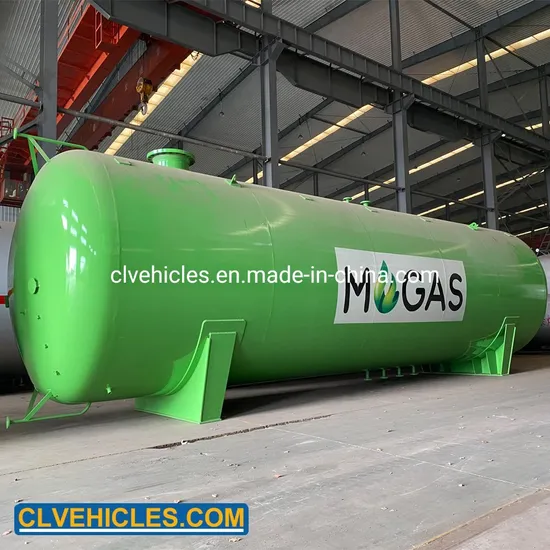

CLW 30tons LPG Gas Cylinder Tank 60000L Bulk Propane Storage Tank For Nigeria
60m3 LPG Gas Tanker 30ton Propane Cylinder Tank Used LPG Storage Tank
60000L 30Ton 60m3 LPG Gas Bullet Storage Tank For Nigeria Gas Cylinder Tank
Pressure Vessel 30Tons LPG Gas Cylinder Propane Storage Tanker For Nigeria Zimbabwe Tank
ASME Nigeria Market CLW Brand 30ton LPG Storage Tank 60m3 Gas Propane Tank
Our main products are LPG Storage Tank, LPG Tank Semi Trailer, LPG Bobtail Truck. LPG Tank Transport Truck, LPG Skid Station etc.
LPG tank for storage from 5000 liter to 200000 liter (5cbm - 200cbm)
LPG tank truck with gas refilling device from 5000 liter to 35000 liter (5cbm - 35cbm)
LPG skid station from 5000liter to 40000liter (5cbm - 40cbm)
LPG mobile tank trailer from 30000 liter to 60000 liter, which also could install refilling device (30cbm - 60cbm)
There is from 5CBM ~ 200CBM (2.5Ton - 100Ton) LPG GAS TANK for optional. It is used for storing gas, liquid, and vapour mediums,
for example, propane, It is widely used in oil, chemical industry, electric power areas.
Pressure Vessel 5000L-120000L ASME LPG Gas Propane Storage Tank
30Tons/30MT, 60CBM/60M3, LPG Gas Bulk Storage Tanker 60,000Liters LPG Propane Tank For Sale
Liquefied petroleum gas(LPG)storage tank with compressed gas or liquefied gas storage tanks.
Sitong promises the top quality of every set of machine and best after-sales service as followings:
(A) The boiler body guarantee is two years , for accessories three years
(B) During the guarantee period , if the main body defective or broken without wrong operating ,
Sitong must replace the parts for free or prepare the spare-parts for free.
(C) Sitong should provide boiler technical service and operation guidance for whole life long.
(D) Regarding to the installation and training , the buyer should take all thecorrelative charges
(accommodation and food , round -trip tickets)
LPG storage tank consist of a lpg tank, Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge etc.
LPG Tank Technical parameters:

NO.	model	design pressure	Cylinder size (diameter * tube length * wall thickness mm)	Dimensions (outside diameter * total height / total length mm)	Material	Total net weight(kg)
1	10m/10000L	1.77MPa	1600*4400*10	1620*2400*5300	Q345R	2800
2	15m/15000L	1.77MPa	1800*5250*12	1824*2600*6300	Q345R	4250
3	25m/25000L	1.77MPa	2200*5800*12	2224*3000*7100	Q345R	5850
4	30m/30000L	1.77MPa	2200*7100*12	2224*3000*8400	Q345R	6800
5	45m/45000L	1.77MPa	2600*7500*14	2628*3400*9000	Q345R	9770
6	50m/50000L	1.77MPa	2600*8500*14	2628*3400*10000	Q345R	10800
P.S:We can produce according to your request, you need the model,To provide you with the best quality, best price, best service

Technical Specification		Parameter
Tank	Tank name	LPG storage tank
	Overall dimensions	11166*3132*3722 mm
	Inner diameter	3100mm
	Vessel type	on the ground
	Designing pressure	1.77 Mpa
	Working pressure	1.61 Mpa
	Designing temperature	-19~50
	Filling medium	Liquid petroleum/propane gas
	Corrosion margin	1.00 mm
	Curb weight	17000kg
	Heat treatment	Bulk
	Filling factor	520 Kg/ m³
	Tanker & pressure parts material	Q345R
	Hydraulic test pressure	2.22 Mpa
	Gas tight test pressure	1.91 Mpa
	Produce standard	ASME standard and GB150 standard
	Optional accessories	safety valve, SCL-UHZ (magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc.
Liquid indicator	Model	UHZ-518C14
	Version	Magnetic
	Nominal pressure	2.5 Mpa
	Scope of testing	50~2500 mm
	precision	2.5
Safety Valve	Model	A42F-2.5-80
	Version	Built-in
	Nominal pressure	2.5 Mpa
	Nominal radius	DN80
	Opening pressure	1.68-1.76 Mpa
	Re-seating pressure	≥0.8 Mpa opening pressure
Handling System	Feed pipe	DN80
	Drain pipe	DN80
	Admission port	DN50
	Sewage outfall port	DN80
	Vent nozzle port	DN80

Different Capacity Of LPG Gas Storage Tank: (5CBM To 200CBM For Optional)
LPG Tank Workshop Production:
Related LPG Tank Products:
For more LPG Gas Storage Tank information, please feel free to contact me or send an inquiry to me Murphy Tang(Ms.)
