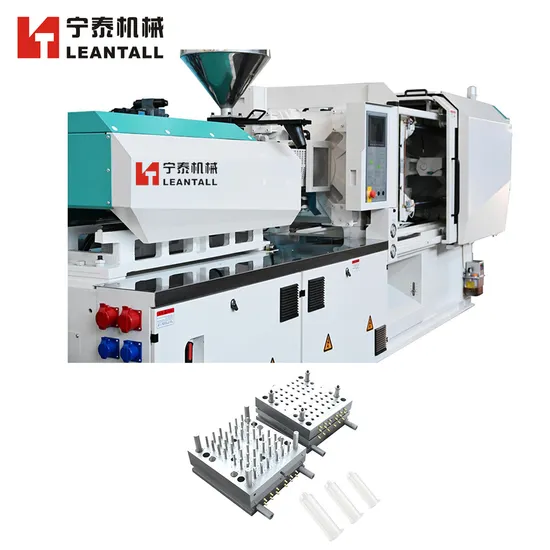

1180 Ton Big Advanced Injection Molding Machine Spare Parts

Product Description

Product Parameters

Part	Name	Unit	NT1180
Injection Unit	SCREW DIAMETER	mm	105	115	125	135
	SCREW L/D RATIO	L/D	23.8	21.7	20	18.5
	INJECTION STROKE	mm	555	555	555	555
	NJECTION SPEED	Mm/sec	65	65	65	65
	SHOT VOLUME(THEORETICAL)	CM3	4805	5764	6810	7943
	INJECTION WEIGHT(PS)	g	4372	5245	6197	7228
	INJECTION PRESSURE	Mpa	207	173	146	125
	INJECTION RATE	cm³/sec	562	675	797	930
	SCREW SPEED	rpm	98
Clamping Unit	CLAMP FORCE	Kn	11800
	OPEN STROKE	mm	1180
	SPACE BETWEEN TIE BARS	mm×mm	1180X1100
	MAX.MOULD HEIGHT	mm	1250
	MIN.MOULD HEIGHT	mm	500
	EJECTOR STROKE	mm	325
	EJECTOR FORCE	Kn	245
	EJECTOR NUMBER	N	21
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	55+37
	HEATING POWER	Kw	68.5
	MACHINE DIMENSION(L*W*H)	m×m×m	12.5*2.65*3.5
	MACHINE WEIGHT(ESTIMATE)	T	54

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
