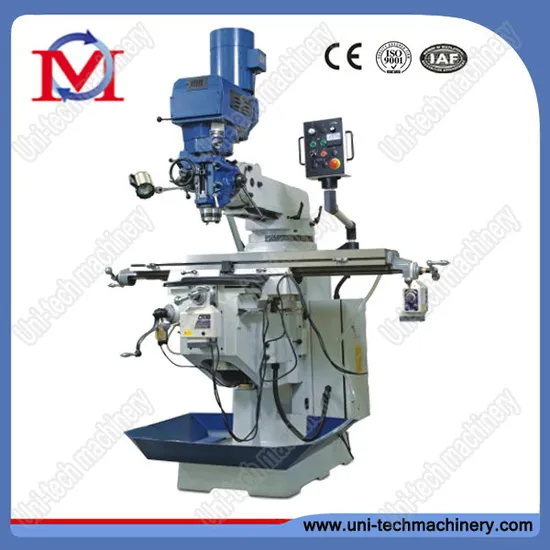

High Precision Universal Turret Milling Machine (X6325D)

Product Description

High precision universal turret milling machine(X6325D)
Main features: 1.This bed type vertical milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.
2.Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.
3.The milling head moves upwards and down wards along the column, the worktable can carry heavy load.The miller can make high precision which is suitable to process high-duty cutting.
4.NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.
5.Our milling machines has passed the strict CE certification and had already got the CE certificate. Our factory also get the ISO certificate.
6.Our universal turret milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.
7.Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.
Machine details of Universal Turret Milling Machine:
X6323A
1.Double 55° swallowtail guide way is adopted on both Y,Z-axis, so it is easy to adjust and repair.
2.Adopted strengthen rib on both sides of the column that makes the machine rigidly and beautiful.

X6323B
1. 55° swallowtail guide way is adopted on Z-axis, and rectangular guide way on Y-axis.
2. Adopted strengthen rib on both sides of the column, that makes the machine rigidly and beautiful.

X6325
1. Rectangular guideway on Y and Z-axis is featured a good rigidity and stability.
2. The guideway on saddle is lined with TF wear.

X6325B
1. Rectangular guideway on Y-axis and 55°swallowtail guideway on Z-axis. It makes the machine stably and easy to adjust.
2. The guideway on saddle is lined with TF wearable material.

X6325C
1. Fixed structure is used to connect the mill head without ram, which makes the cut intensity will.
2. Rectangular guideway on Y-axis and 55°swallowtail guideway on Z-axis. It makes the machine stably and easy to adjust.
3. The guideway on saddle is lined with TF wearable material.

X6325D
1. Rectangular guideway on Z-axis is featured a good rigidity and stability.
2. The guideway on saddle is lined with TF wearable material.

XU6325
1. Rectangular guideway on Y and Z-axis is featured a good rigidity and stability.
2. X,Y axis motor 250w. Feed rate: 15, 23, 33, 48, 78, 114, 166, 257(8kinds).
X6330A
1. Fixed structure is used to connect the mill head without ram, which makes the cut intensity well.
2. Rectangular guideway on Z-axis is featured a good rigidity and stability.
3. The guideway on saddle is lined with TF wearable material.

X6333
1. Rectangular guideway on Z-axis is featured a good rigidity and stability.
2. The guideway on saddle is lined with TF wearable material.
Production of Universal Turret Milling Machine:
Universal Turret Milling Machines in workshop and stock:

MODEL		X6323A	X6325	X6333	X6330A
Table size		230*1067(9*42) 230*1246(9*49)	254*1270(10*50)	330*1370(13*54)	305*1370(12*54)
			254*1370(10*54)	330*1500(13*60)	305*1500(12*60)
Long travel(mm)		650 840	850 950	840 1000	870 1000
Cross travel(mm)		305	420	368	380
Vertical travel(mm)		400	420	450	430
T-slot No.and size(mm)		3*16
Ram travel(mm)		312	470	500	500
Distance from spindle nose to table surface(mm)		0-415	0-405	0-450	0-350
Spindle hole taper		Standard:R8	Standard:R8	standard:ISO40	standard:ISO40
		Optional:ISO30/ISO40	Optional:ISO30/ISO40
Spindle travel(mm)		127
Spindle speed(r.p.m)		standard: shift grade 16: 50HZ65-4500,60HZ80-5440			standard:50HZ:65-4500,
					60HZ:80-3750
		optional:variable:65-4500	optional:variable:65-4500	optional:variable:65-3750	optional:variable:
					65-3750
Auto.quill feed		Three steps:0.04(0.0015)/0.08(0.003)/0.15(0.006'')mm/revolution
Spindle motor		2.25kw/3hp	2.25kw/3hp	3.75kw/5hp	3.75kw/5hp
Head swivel		90°
Head tilting		45°
Dimension of package	One miller per case	1400*1476*2030	1516*1550*2080	1800*2016*2180	1566*1650*2080
	Two miller per case	1450*1570*2080	1650*1790*2170	1800*2200*2180	1720*1800*2175
	Three miller per case	1450*2180*2080	1650*2285*2235
G.W/set		1100	1550	2300	1750

---
