High Definition-Power Line Communication KS820C

Product Details

Product Description

Product Description
High Definition-Power Line Communication KS820C
General type
Products Features:
●Intelligent manufacturing,gigabit bandwidth,long transmission distance,self-organising network and self-routing,
fully transparent dissemination of data,industrial grade standards.
●The advantages of broadband power line carrier over traditional narrowband power line carrier communication are
high communication rate, bi-directional transmission, good transmission stability and high scalability.
●It is a high performance SoC-based power line carrier communication module，with highly integrated and reliable
features.Adopt OFDM modulation technique.
●The carrier supports bus, star, tree, and hybrid network topologies structure.
●The carrier band is in1.8~86MHz，the physical layer rates up to1000Mbps，hundred megabytes of bandwidth at
the data layer，long transmission distance，power line can transmit up to 300 metres.
Technical data:

Classification	Technical indicators
Power supply	DC 12-42V
PLC Signal port	Any two-core cables, power cables, parallel cables, twisted pairs, trailing cables, etc.
Modulation type	OFDM modulation type
Carrier frequency	1.8～86 MHz
Ethernet bandwidth	10M/100Mbps self-adaption
Transmission distance	300 metres of point-to-point power lines and 500 metres of twisted-pair cables
Data delay	Within 10ms
Packet loss probability	Less than 0.1%
Overall power consumption	≤3W
Standard agreement	TCP/IP，UDP，Profinet，Home Plug，Home Plug AV，IEEE 802.3，IEEE 802.3U，IEEE 802.3ab，IEEE 1905.1，IEEE 1900，IEEE 1901etc
Way of encryption	AES-128bit
Multicast	Support IGMP multicast protocols,the maximum number of nodes is 128
Exterior dimensions	Size：113.28425mm （LWH） Weight：200g Install：Earhook
Environmental requirement	Operating temperature：-40℃～85℃ Operating humidity：20%-95%（No condensation） Storage temperature：-40℃～85℃
Working time	Industrial grade supports 7*24 hours all-weather work

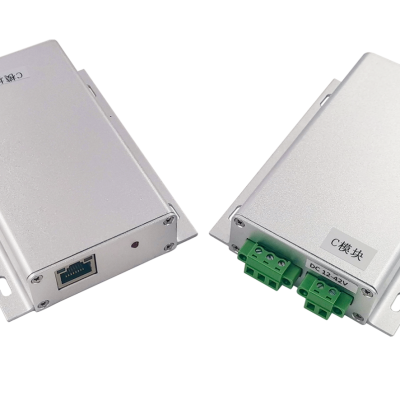

Exterior dimensions:
PLC’s length, width and height are：113.2x84x25mm（without terminal），there are four fixing holes in the fixing
lugs on both sides,which are fixed with screws No. M4.
Applications:
It has been widely used in electric power equipment data acquisition, inspection robots, charging pile data
acquisition,as well as intelligent monitoring, building visual intercom, industrial field data acquisition and control
and other occasions that require real-time data communication.
