Hammermill Screen for Feed Mill

US$20.00-100.00 1 pieces (MOQ)

Basic Info.

Model NO.

Hammermill Screen

Processing Object

Animal-Derived Feed

Processing Technics

Crushing-before-Mixing

Screen Mesh

With Screen Mesh

Grinding Equipment Type

Feed Hammer Mill

Pellet Mill Type

Ring Die Pelleter

Bulking Machine Type

Single Screw Bulking Machine

Expanding Method

Dry Expansion

Condition

New

Applicable Materials Shape

Ball

Warranty

Yes

Material

Q235

Transport Package

Wooden Case

Specification

105mm, 120mm, 150mm, 200mm, 250mm, 300mm

Trademark

AGS

Origin

Zhenjiang

HS Code

8479909090

Production Capacity

10000pieces/Month

Product Description

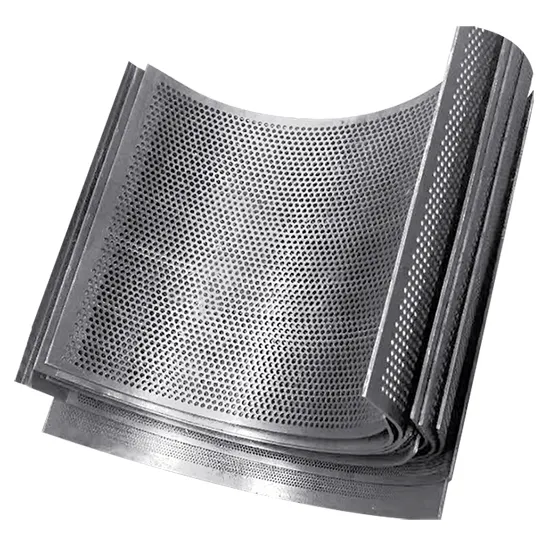

HAMMERMILL SCREEN:
The sieve is the main accessory to control the fineness of the crushed product, and it is also one of the main wearing parts of the hammer crusher. Its type, shape, density of holes, wrap angle and opening rate have an important influence on the crushing and screening effect.

Standard Specification (also can customized as per requirement)
1264x888x1, Φ1	800x358x1
1264x888x1.2, Φ1.2	800x400x1
1264x888x1.5, Φ1.5	1365x298x1
1264x888x2.0, Φ2.0	1365x398x1
1780x1014x2, Φ4.0	1550x380x1
1780x1014x2, Φ5.0	1520x510x1
1780x1014x2, Φ6.0	1780x354x1
1780x1014x2, Φ7.0	1780x504x1
1780x1014x2, Φ8.0	1780x764x1
1780x764x2, Φ3.0	1780x1014x1
1780x764x2, Φ4.0	The minimum hole diameter can be 0.6mm
1780x764x2, Φ5.0
1780x764x2, Φ6.0
