Plastic Film Slitter Paper Roll Slitting Machine for BOPP Film Mini Slitter Machine

US$7,000.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

KTSM-S150

Type

Roll Slitter

Work Method

Round Knife Cutting

Structure

Cutting Part

Packaging

Cartons

Classification

Plastic Film Slitting Machine

Applicable Process

Process Materials

Suitable Substrates

Film Cutting

Packaging Material

Wood

Product Name

Plastic Film Slitter

Keyword

Mini Slitter Machine

Keyword 1

Paper Roll Slitting Machine

Keyword 2

Slitting Machine for BOPP Film

Keyword 3

Plastic Roll Slitter Machine

Keyword 4

Slitting Machine BOPP

Keyword 5

Slitting Machine Slitter Rewinder

Keyword 6

BOPP Slitting Machine

Plasic Film Slitting

Yes

Aluminum Foil Slitting

Yes

Round Slitting Knife

Yes

Roll to Roll Slitting

Yes

Unwind with Air Shaft

Yes

Rewind with Air Shaft

Yes

Unwind with Auto Loading

Yes

Transport Package

Wooden Pallet

Specification

1200x1400x1100mm

Trademark

KETE

Origin

China

Production Capacity

30 Sets/ Month

Packaging & Delivery

Package Size

120.00cm * 140.00cm * 110.00cm

Package Gross Weight

1200.000kg

Product Description

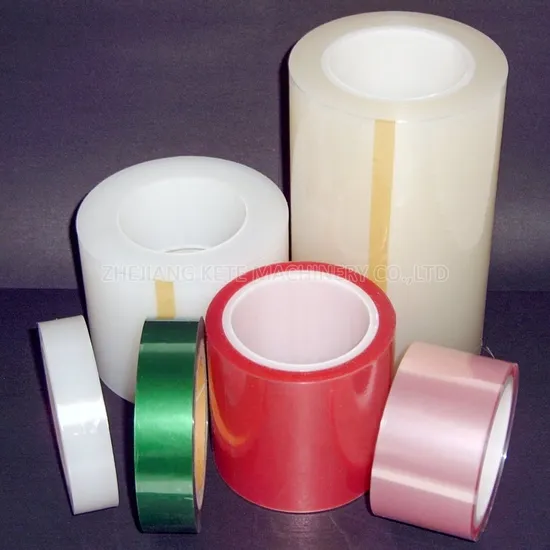

This Plastic Film Slitting Machine Is Suitable for Slitting Roll Materials Such As BOPP, PET, CPP, CPE, PVC, Aluminum Foil, Adhesive Paper, Leather Paper,
And Other Kinds Of Paper, Etc.
Ω Use Round Slitting Knife.
Ω With the Auto Length Counting System.
Ω Unwind and Rewind with Tension Control.
Ω Unwind with the EPC Control System.
Ω Unwind and Rewind using Air Shaft. Ω Inverter uses Import Brand. Ω Electrical Parts use Schneider Brand.
Ω Optional: Unwind Shaft Type Auto Loading.
Ω Optional: Unwind Shaft-less with Auto Loading.

Model	KTSM-S150/1100	KTSM-S150/1300
Max. Raw Material Width	1000mm (39.4")	1200mm (47.2")
Max. Unwind Diameter	Φ600mm (23.6")	Φ600mm (23.6")
Max. Rewind Diameter	Φ450mm (17.7")	Φ450mm (17.7")
Min. Slitting Width	30mm (1.18")	30mm (1.18")
Max. Slitting Speed	150m/min	150m/min
Error	<0.5mm	<0.5mm
Paper Core Inner Diameter	76mm/152mm (3"/6")	76mm/152mm (3"/6")
Total Power	10kw	12kw
Machine Weight	1200kg	1500kg
Machine Size (LWH)	1200 x 1400 x 1100mm	1200 x 1600 x 1100mm
Machine Power	3 Phase 220 / 380 / 440v 50/60Hz
