2000kgs Steel Crawler Mini Tracked Hydraulic Digger Excavator Ht22

Product Description

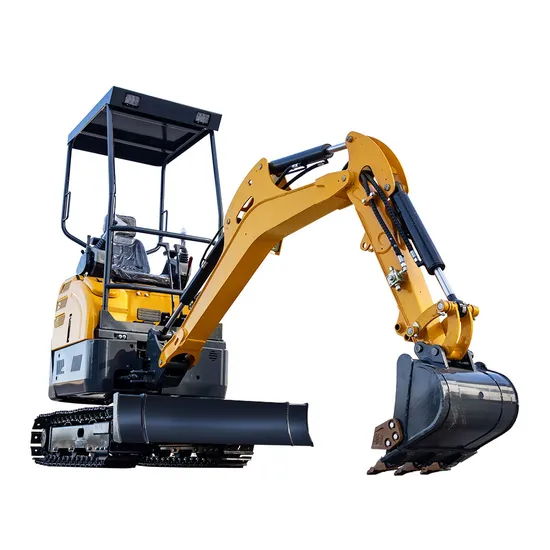

2000kgs Steel Crawler Mini Tracked Hydraulic Digger Excavator HT22
Advantages:
1. Full hydraulic pilot operation includes: pilot handles on both sides, dozer blade, walking operation, breaker and side swing function. When working, after the engine is started, the safety lock must be pulled down first before the whole vehicle can action, which can also effectively protect drivers as an effective safety protection function.
2. The big arm adopts an inverted structure device, and the connected side swing head is integrally formed by casting, which has a better appearance and stronger strength than the welded one.
3. Steel track high and low speed:
The service life of the steel track is longer than that of the rubber track, and it can also be interchanged with the rubber track. The motor is a high and low speed plunger motor, and the motor has a hidden structure.

Working weight (KG)	2200KG
Digging bucket capacity	0.056m³
Engine	Kubota D1105
Cylinders	3
Rated power	14.2KW/2200rpm
Swing speed	9.5r/min
Grade ability	58%
Overall machine size (unit: mm)
Total length/transport lengthA	4750mm
Total width B	990mm/1300mm
Upper width D	1050mm
Overall height (cab roof) C	2470mm
Standard track shoe width F	230mm
Gauge G	780mm/1090mm
Minimum ground clearance H	150mm
Tail turning radius I	780mm
Track ground length J	1200mm
Track length K	1500mm
Working range (unit: mm)
Maximum excavation height a	3500mm
Maximum unloading height b	2560mm
Maximum Digging depth c	2370mm
Maximum digging distance d	3030mm
Minimum radius of gyration e	1750mm
Maximum height at minimum turning radius f	2600mm

* Other Special design of this type of small excavator
1.It adopts the well-known domestic brand Changchai 192F engine, which has strong power and stable work, or adopts the popular
Kaopu engine to meet European emission requirements. Cooperate with American BRIGGS & Stratton engine to meet American emission
requirements.
2. The structural parts of the machine are processed by the Japanese supporting manufacturer. The whole
vehicle has been sandblasted, pickled, phosphated and sprayed to increase the adhesion of the paint molecules, making it more
durable, non-bleaching, and smoother.
3. The length of the dozer shovel can be adjusted according to the working range:
84cm-105cm, and the maximum working height of the dozer shovel can be adjusted from -15cm to 15cm.
4. The track can stretch from a minimum of 830 mm to a maximum of 1000 mm, and can pass through narrower places.
2000kgs Steel Crawler Mini Tracked Hydraulic Digger Excavator HT22

---
