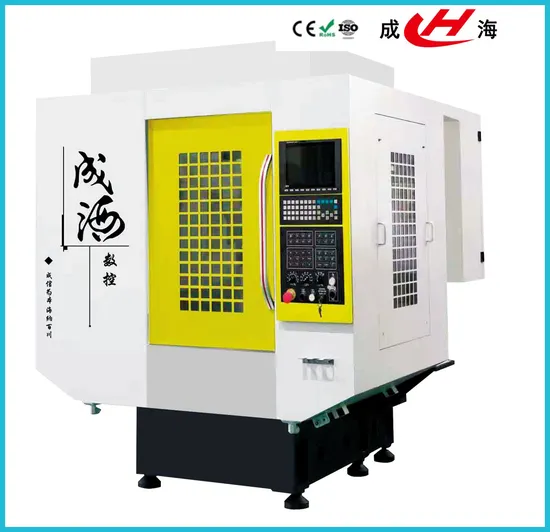

High Precision T6 CNC Milling Tool for Efficient Tapping

Product Description

Company Profile

Jiangsu Chenghai Intelligent Equipment Co.,Ltd.is located in intelligent equipment Industrial Park, Fengxian Economic Development Zone,Xuzhou City,Jiangsu Province.Is a set design,manufacturing, sales,service as one of the CNC machine tool manufacturing company.The company has a 15,000 square meter standardized workshop ,phase ll and phase lll intelligent industrial park is also under construction,the company has passed the ISO9001 quality management system certification.The main business scope is intelligent equipment manufacturing;Research and development of intelligent robots; CNC machine tool manufacturing;Technical services and other projects.The company has perfect advanced testing equipment,assembly will be more than 48 hours uninterrupted actual operation inspection and record.The main products of the company have entered the core manufacturingfields of key industries such as automobile manufacturing, national defense,aerospace,rail transit,hardware and molds.
Detailed Photos
Good combination of efficiency and precision.
Using heavy dUty body design,box shaped column,good rigidity and high stability.
The three axis adopts linear ball guide,which has high speed and high precision.

Zaxis with brake,no counterweight design,high speed movement up and down,no vibration,high precision.
With the umbrella-shaped tool magazine on the head,the tool can be changed quickly and the efficiency is high.
The rear chip removal structure design makes it easier to clean the slag.





Specification

Machine Type	Unit	T6
Worktable
Table size	mm	700*420
T slot(width x no. x pitch )	mm	14-3*125
Max. Table loading capacity	kg	300
Travel
X/Y/Z axis travel	mm	600/400/350
Distance from spindle nose to table surface	mm	135-485
Distance from spindle center to column guide surface	mm	420
Spindle
Spindle taper		BT30
Spindle speed	rpm	2000Direct connection oil cooling
Spindle motor power	kw	5.5
Feed
X/Y/Z axis rapid movement speed	m/min	X/Y:48 Z:48
Cutting feed speed	mm/min	1-10000
X/Y/Z axis motor power	kw	1.8/2.4/3.8
Tool magazine
Type and qty	Hold	Clamp arm type/21
Max.Tool length	mm	250
Max.Tool dia.		50/120
Max. Tool length	kg	3
Tool change time	SEC	1.6
Accuracy
Positioning accuracy	mm	±0.005/300
Repeated positioning accuracy	mm	±0.003(300)
Machine size
Overall dimension(X/Y/Z)	mm	1560*1900*2300
Machine weight	kg	2100

Strict Quality Control
Natural Aging Treatment of Casting
Spindle vibration detection Ballarroundness accuracy testing


1.Workpiece display
Spindle dynamic balance detection Laser interferometer detection
The T6 machine can complete miling,boring, drilling,tappingand cutting threads and other processes.
2.Testing process/Multi-layer testing before delivery
Ball bar roundness accuracy testing Machine cutting testing
The importance of testing includes not only the machine performanc butalsothe strength of the manufacturer and the responsibility to the customer.
Certifications
Exhibition photos
CONFIGURATION

KND controller system	Water Tank cooling device
Automatic lubricating device	Outer protective cover
Spindle taper hole air blowing device	Handheld air gun
Electric cabinet heat exchanger	Working light
Three color warning light	RS-232 Standard output interface
Tools & tool box	Operation Manual

OPTIONAL CONFIGURATION

Automatic tool changer (Armless type or Arm type)

Spindle oil cooling device

High speed spindle

Spindle center water outlet unit

Chain chip conveyor/Spiral chip conveyor

Disc type oil water separator

Electric cabinet air conditioning

---
