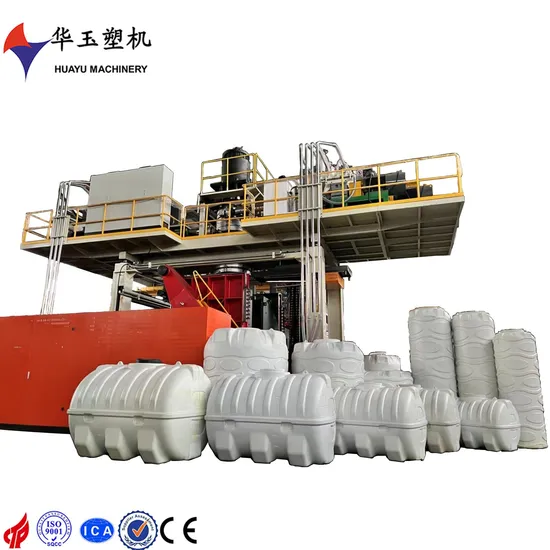

Huayu High Efficiency 5000L 4layers Water Tank Extrusion Blow Molding Machine

US$450,000.00-500,000.00 1 Piece (MOQ)

Basic Info.

Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
After-sales Service
1 Year
Total Power
715kw
Screw Diameter
120/120/120/120mm
Screw L/D Ratio
28:1
Extruder Motor
90/90/90/90kw
Screw Heating Power
5.5kw*16
Plasticizing Capacity
1200kg/H
Accumulator Capacity
150kg
Die Head Heating Power
170kw
Clamping Force
3000kN
Maximum Air Pressure
0.8MPa
Air Consumption
3m3/Min
PLC
Siemens
Thickness Controller
Moog
Transport Package
Be Disassembled Into Many Parts for Container Tran
Specification
80T
Trademark
HUAYU
Origin
China
Production Capacity
4-18PCS/H

Packaging & Delivery

Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
50.000kg

Product Description

5000L 4 layers blow moulding machine, mainly used for produce water storage tanks, capacity range 1000~5000L. Otherwise can be designed for producing non-standard products according to customer's request.
Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12''
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller's machine should be passed the ISO9001, CE certification.
