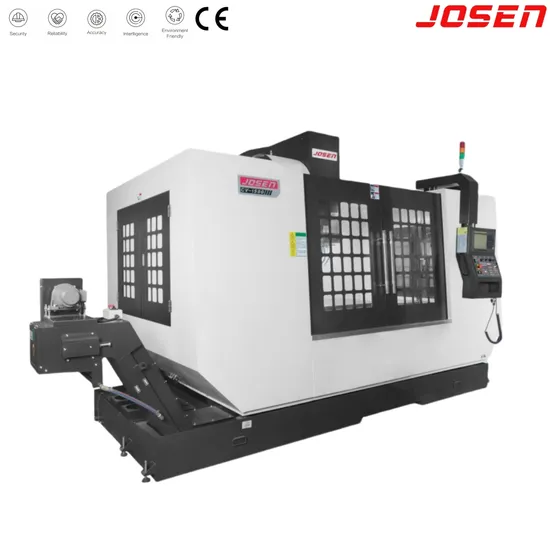

3 Axis Cnc Vertical Machining Center Precision Vertical Machine Center High-Speed Vertical Machining Center CV-1580 Product Description
| Main technical parameters | Unit | CV-1055F | CV-1370 | CV-1580 | CV-1890 |
| X-axis travel | mm | 1020 | 1320 | 1520 | 1800 |
| Y-axis travel | mm | 520 | 720 | 800 | 900 |
| Z-axis travel | mm | 550 | 650 | 700 | 800 |
| Distance from nose of spindle to table surface | mm | 145-695 | 170-820 | 155-855 | 200-1000 |
| Working table size (X*Y) | mm | 1120*520 | 1400*700 | 1650*800 | 2000*900 |
| Table T-slot size (width * number of slots * spacing) | mm | 18*5*100 | 18*5*125 | 18*5*150 | 22*5*160 |
| Max. loading capacity of working table | KG | 500 | 1000 | 1400 | 2500 |
| Spindle motor (continuous/30 minutes) | kw | 11/15 | 15/18.5 | 15/18.5 | 15/18.5 |
| Spindle speed | rpm | 10-10,000 | 10-8,000 | 10-8,000 | 10-8,000 |
| Spindle inner taper bore | | BT40 | BT50 | BT50 | BT50 |
| X/Y/Z axis motors | kw | 3/3/3 | 37683 | 3/3/3 | 3/3/3 |
| Rapid feed rate (X/Y/Z) | mm/min | 36000/36000/36000 | 24000/24000/24000 | 20000/20000/20000 | 20000/20000/20000 |
| Fastest cutting feed rate | mm/min | 1-10,000 | 1-10,000 | 1-10,000 | 1-10,000 |
| Tool magazine capacity (standard) | set | 30 | 0/24 | 0/24 | 0/24 |
| Tool magazine form | | Disc type | Disc type | Disc type | Disc type |
| Tie rod bolts form | | MAS-P40-1(45°) | MAS-P50-1(45°) | MAS-P50-1(45°) | MAS-P50-1(45°) |
| Maximum tool diameter of adjacent tools | | Ø80 | Ø110 | Ø105 | Ø110 |
| Max. tool diameter of empty adjacent tool | | Ø150 | Ø200 | Ø200 | Ø200 |
| Maximum tool length | mm | 300 | 300 | 350 | 350 |
| Maximum tool weight | kg | 8 | 15 | 15 | 15 |
| Positioning accuracy (full stroke) | mm | ±0.005 | ±0.005 | ±0.01 | ±0.01 |
| Repeat positioning accuracy (full stroke) | mm | ±0.003 | ±0.003 | ±0.005 | ±0.005 |
| Controller | | FANUC 0I-MF | FANUC 0I-MF | FANUC 0I-MF | FANUC 0I-MF |
| Water tank capacity | liter | 250(Side row) | 350 | 350 | 350 |
| Pneumatic pressure requirements | kg/cm2 | 6 | 6 | 6 | 6 |
| Power Specifications | | AC380±10%,3 phase,60Hz/50Hz | AC380±10%,3 phase,60Hz/50Hz | AC380±10%,3 phase,60Hz/50Hz | AC380±10%,3 phase,60Hz/50Hz |
| Electricity demand | KVA | 30 | 30 | 50 | 50 |
| Floor space (L*W) | mm | 3450*3070 (Side row) | 4800*3020 (Front track) | 5350*4800 (including pedal hydraulic station)(Front Chip removal machine) | 6000*5150 (including pedal hydraulic station)(Front Chip removal machine) |
| Machine height (maximum) | mm | 2840 | 3030 | 3350 | 3465 |
| Machine weight | T | 6 | 9 | 11 | 16 |
| Number | Name | Number | Name |
| 1 | FANUC 0I-MF CNC controller
| 10 | Chip pan and water tank
|
| 2 | Full cover shroud | 11 | Transformer |
| 3 | Automatic lubricant system | 12 | Spindle air curtain dust protection system
|
| 4 | Ground bolts and spacers | 13 | Mechanical, electrical and operating instructions
|
| 5 | Tool-box | 14 | Rigid tapping |
| 6 | Work light | 15 | Electrical box heat exchanger |
| 7 | Warning light | 16 | Machine cleaning water gun |
| 8 | M30 automatic power-off system | 17 | Three-axis slide telescopic shield |
9 | Portable chip blowing air gun |
18 | 24-blade arm type tool magazine |
| Description / Machine Model | Unit | CV-1580 |
| Itinerary |
| X-axis travel | mm | 1520 |
| Y-axis travel | mm | 800 |
| Z-axis travel | mm | 700 |
| Distance from nose of spindle to table surface | mm | 155-855 |
| Workbench |
| Working table size (X*Y) | mm | 1650*800 |
| Table T-slot size (width * number of slots * spacing) | mm | 18*5*125 |
| Max. loading capacity of working table | KG | 1400 |
| Spindle |
| Spindle motor (continuous/30 minutes) | kw | 15/18.5 |
| Spindle speed | rpm | 10-8000 |
| Spindle inner taper bore | | BT50 |
| Three axis | | |
| X/Y/Z axis motors | kw | 3/3/3 |
| Feed rate |
| Rapid feed rate (X/Y/Z) | mm/min | 20000/20000/20000 |
| Fastest cutting feed rate | mm/min | 1-10,000 |
| Oil pressure system |
| Water tank capacity | liter | 350 |
| Pneumatic pressure requirements | kg/cm2 | 6 |
| Electricity |
| Power Specifications | | AC380±10%,3 phase,60Hz/50Hz |
| Electricity demand | KVA | 30 |
| Other |
| Machine weight | T | 9 |
