CNC Windows and Doors Making Machinery Aluminum Cutting Machine Double Head Aluminum Cutting Machine Made in China

Product Description

450*3700A Any-angle Aluminum Single Head Cutting Saw
On-Site Factory | OEM Support | One-Stop Purchasing

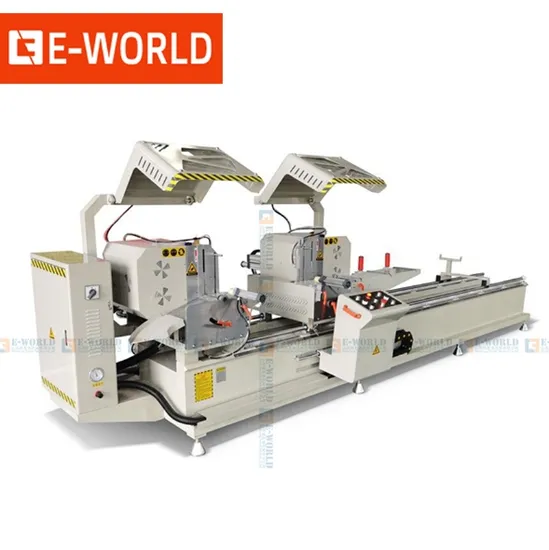

The Double-Head Saw machine is designed for cutting aluminum profiles.
The machine supports a maximum cutting length of 3700 mm and is capable of cutting at 45° and 90° angles.

MODEL	450*3700A
Input voltage	230/460V /3/60Hz
Input power	3Kw
Air pressure	0.5~0.8MPa/ 120psi
Air consumption	60L/min
Motor rotation speed	2800r/min
Cutting length	400~3700mm
Cutting length tolerance	±0.005 mm
Cutting angles	90, 45
Cutting width	10~120mm
Cutting height	10~200mm
Saw feeding speed	0~3m
Saw blade standard	450mmx4.4x30xZ120
Overall dimensions	4.5x1.2x1.4 m

Detailed Photos
User-Friendly Button Control
Easy-to-use button operation with one-touch start/stop functionality.
Buttons control cutting angles, clamp pressure, and feeding.
Equipped with an emergency stop button for added safety.
Steady Processing Accuracy
The imported linear guide rail and linear bearing motion pair ensure consistent processing accuracy, delivering smooth and precise operation for optimal results in aluminum profile cutting.

Automatic Safety Cover
The cutting heads are equipped with automatic safety covers that lowers during cutting and rises upon completion automatically.
This ensures worker safety and prevents debris from scattering.
Welcome to Visit Our Factory!
We warmly invite you to visit our factory to explore our advanced insulating glass production equipment.
Experience our manufacturing process firsthand and discuss customized solutions for your needs.

Certifications
Our machines meet international quality and safety standards, including CE, ISO, and EU certifications, ensuring reliable performance, durability, and compliance with industry regulations.
We are committed to building long-term partnerships with customers worldwide, providing high-quality insulating glass production equipment, professional support, and reliable after-sales service.

---
