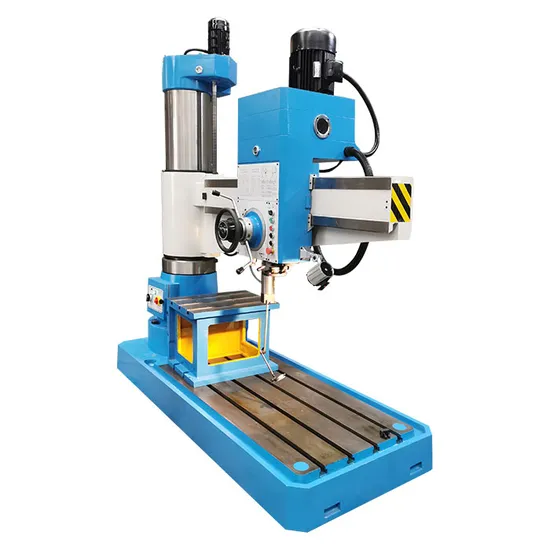

Z3063X20/1 Hydraulic radial arm drilling machine with CE

Product Description

Main specificaiton for Radial drilling machine model Z3063X20

Specification	Z3063×20
Max. drilling dia.	63mm
Distance from spindle axis to column surface	220-130mm
Distance between spindle axis and column surface	430-1900mm
Spindle travel	400mm
Spindle taper	MT5
Spindle speed range	16-1600rpm
Spindle speed steps	16
Spindle feeding range	0.04-3.2rpm
Spindle feeding steps	16
Rocker rotary angle	180°
Main motor power	5.5kw
Feeding motor power	1.5kw
Machine weight	6500kg
Overall dimension	3000×1250×3300mm

Standard accessories
Short taper sleeve
back set of wedge
drill chuck
arbors
workbench
unloading knife wrench
English operation manual
Quality certificate
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
Detailed machine pics.

---
