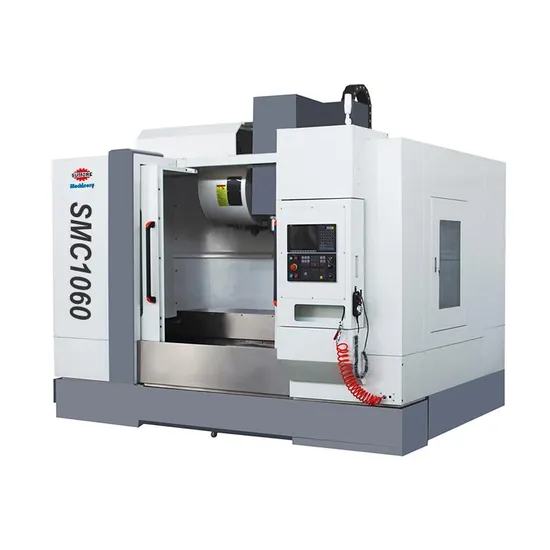

SMC1060 Siemens 828d/GSK/Fanu High Precision Vmc1060 CNC Milling Machine 5 Axis CNC Vertical Machining Center

Product Description

Product Description
SUMORE VMC1060 Siemens 808D/HNC/GSK/FANU 3 Axis 4 Axis 5 Axis CNC Machining Center with 1200x600 table
(VMC from small to big size, the web pages are limited, so please contact us for more details)

Product Parameters

Model	SMC1060
Table size	1200x600mm
X axis travel	1000mm
Y axis travel	600mm
Z axis travel	600mm
spindle nose to table surface	120-670mm
spindle axis to column surface	650mm
T-slot	5-18
Spindle taper	BT40
Max. spindle speed	8000rpm
Main motor power	11kw
Max.table load	800kgs
Table size	1200*600mm
Automatic tools changer	24 pcs tool arm type (optional:20 carousel)
Max.tool weight	8kgs
Max. tool length	200mm
Max. tool diameter	80mm /150mm
X,Y axis rapid movement rate	20000mm
Z axis rapid movement rate	18000mm
Position accuracy	±0.01mm
Cutting feed rate	1-10000mm/min
Repeat positioning accuracy	±0.003mm/300mm
Air supply	0.6MPa
Machine dimension	3350×2300×2550mm
Machine weight	5800kgs

Detailed Photos
Main Feature
1.Taiwan HIWIN high precison guideway
2.Taiwan-made spindle unit,8000-12000rpm available
3.Taiwan OKADA 24/32T Arm Type ATC
4.Reliable Control System:Fanuc,Siemens,Mitsubishi,GSK.
5.The 4th and 5th axis can be installed freely.
SMC1060 is a multi-purpose machine which could mill surface & drill holes. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipment's for large automation production.
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE certificate . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
