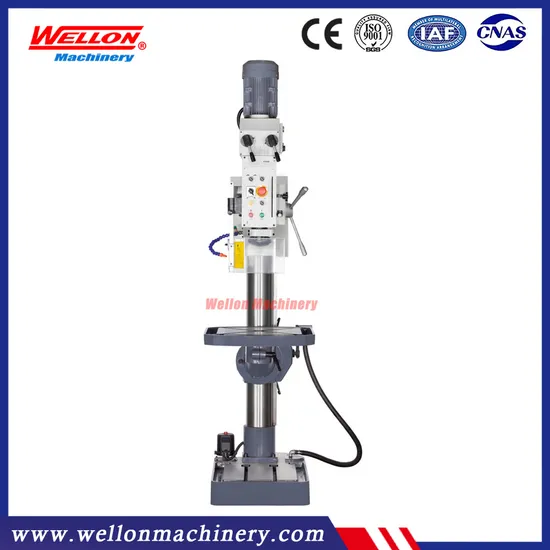

Vertical Drill Press Machine Z5040E Driller Machine

Product Description

Product Description
Detailed Photos

Product Parameters

Performence Features: 2 speed strong power motor, 18 steps speed which can improve the machining accuracy and producing efficiency.
2 steps power feed 0.1-0.2mm/rev.
Drilling, tapping, boring, reaming;
Automatic tools ejectors
Strong column, table can rotary and tilting, Gear drive, lower noise;
Technical parameter:

MODEL	Z5040E
Max. drilling capacity	Φ40mm
Max tapping in steel & cast iron	M20 & M24
Spindle travel	180mm
Spindle taper	M.T.4
Spindle feed range	2steps/0.1-0.2mm/rev
Spindle speed	50-1450 rpm
Width of T-slot	18mm
Distance from spindle axis to column	350mm
Distance from spindle nose to table	770mm
Distance from spindle nose to base	1210mm
Diameter of column	150mm
Table size	560×560mm
Base size	730×500mm
Motor power	0.85/1.5kw
N.W/G.W	465/615kg
Packing size	2270×690×1100mm

Standard accessories:
Work light.
Coolant system.
Drill chuck and arbor
Fender device
Tool box & tools 1 set.
Auto feed
Lifting worktable by motor
Optional accessories:
Machine vice
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
