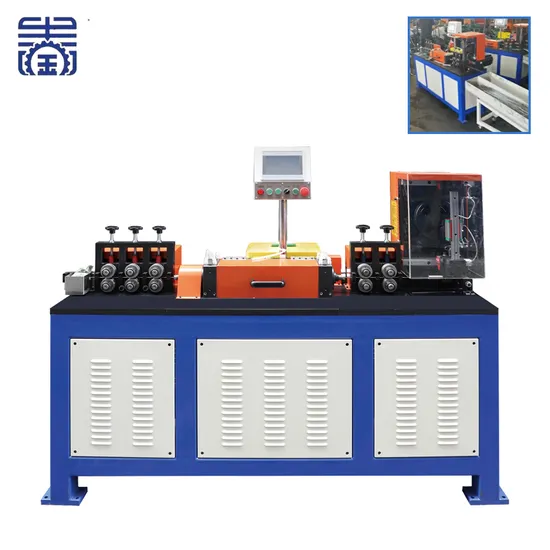

4-7mm Scrap Steel Straightening Machine with Preferential Factory Price

Product Description

Products Description
2-6mm Servo wire straighten and cutting machine with intelligent system for stainless steel, low carbon wire and other material
The range of wire diameter which can be cut is very wide. 2---12 mm diameter steel wire can be chosen to cut. The cross section can be cut 50 mm at least. It can cut and straighten many kinds of material such as iron, low carbon steel, stainless steel, copper, Aluminium etc other metals. The error is only 0.5 mm so please don't suspect its ability.By the way, the speed could be 40 m/min. It is same as about 2-3 sets yield of outdated straighten machine. The most important is its stability and flexible operation. There is no any over bending and loss of material. Every steps can be controlled by computer.
PRODUCT SPECIFICATIONS

Type	Information& Data	Type	Information&Data
Wire diameter	2-6 mm	Cutting motor	1 kw(3000r) Servo cutting
Cutting length range	more than 50MM	Cutting oil cylinder model	/
Feeding speed	7-35 m/min	Wire diameter range	2-6mm low carbon steel (2-4.5mm stainless steel)
Length error	+-0.5mm	Machine size	2670*710*1450 mm
Feeding motor	1.5kw with reducer	Wire shelve	Normal shelve without any power
Straighten motor	3kw---2P	Option	Automatic shelve can be rotated automaticlly
Cutting servo motor	0.75kw 1500r
Feeding group	2 groups
Screen	Touch screen
Straighten component quantity	8pcs

PRODUCT CONFIGURATION
PLC made from ARCUCH Imported XINJE moto Linear from Taiwan HIWIN Straight moto from HS
Exportation market percentage
JC automatical machine can export all over the world and main market is middle-east, Southeast Asia and Eastern Europe market. Welcome contact us to ask more details.
Our Advantages
Automation
It takes PLC system and comes with English instruction. Feeding, straightening, cutting and coiling operation are automation
Automatic shutdown
It comes with the protection function of automation shutdown when the wire be cut in accident.
Servo motor cutting
The blocking of material will not happen by the servo motor machine
Consultation function
The data could be modified,deleted or added by this function
Memory function
The computer can deposit several data such as length and quantity
Intelligent modification
The AI supply hint for modification and check if it is acceptable.
Makeable product
Stainless steel
Aluminium
Bicycle basket
Sliver
Low carbon steel
Black iron wire
SIMILAR PRODUCTS

FAQ
Q1. Why choose us?
A. Our founding team has more than 20 years of experience in the R&D and manufacturing industry of metal forming and welding machinery. What we offer is a good product at a reasonably price.
Q2. Can I customize the product?
A. Yes . We can customize production equipment solutions according to your product requirements .
Q3. Can I get a sample?
A. Yes. But the proofing cost and shipping are negotiated by both parties.
Q4. What's the delivery time?
A. The delivery time needs to be determined by both parties through negotiation .
Q5. How do I order from you?
A. Consulting → equipment plan quotation →negotiation→ prototyping →PO/PI→ payment deposit → production → debugging →
delivery→further.
If you want more product information, please feel free to contact us!

---
