2024 Hot Sale High Quality Broiler Breeder Pan Feeder and Drinker System for Automatic Poultry Farm Floor Raising Chicken

Product Description

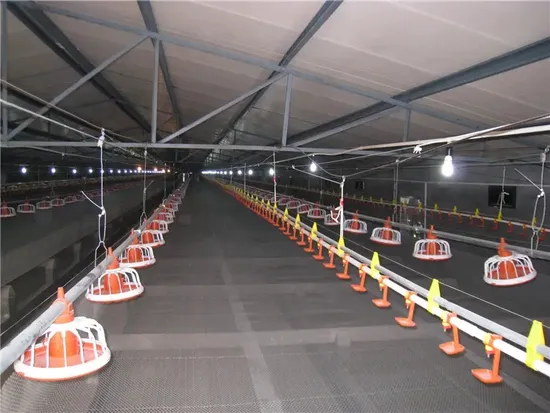

1. Main Feeding System (Silo) The feed is transported to the inside of the chicken house through a main feed line conveyor system in the lower part of the storage tower, and the feed is transported to the distribution lines through hoppers. The storage system ensures that feed is not easily contaminated and transport systems avoid loss of feed during transport.· Silo : 12-32 Tons · Material: Hot-dip galvanized material · Drive Motor : WanXin, 1.1KW 380V 50HZ · Main feed line : ∅75mm · Feed drop part : ∅75mm include soft pipe
2. Feeding Line System After the hopper receives the dropped feed in pipe, the feed is transported to the distribution feed pipes through the hot-dip galvanized pipe, and the level sensor at the tail senses the amount of feed to avoid feed overflowing.· Feeder : 4 feeding pans or 3 feeding pans /3 meters· Driving Motor : WanXin, 0.75 Kw 380V,50HZ· Hopper : Hot-dip galvanized
· Feed Sensor : Doyle motor
· Hanging System : winch in the middle of house, hanging point 3m, all steel wire.
· Anti-roost System
3. Nipple Drinking System The nipple drinking system has been treated at the front end of the coop by a filter/doser system, ensuring that the water quality.
· Waterline Front System : Used to control the drinking system, including filter, water meter, doser,etc· Pressure Regulator : 10-13KPA· Main Water System : ∅22mm PVC pipe· Nipple Drinking System : 12 nipples/3m/unit with drip cup· Winch : 1500LB· Hanging System : 3m distance· Water-level Display Pipe · Anti-roost System
4. Ventilation System(Cooling Fan and Air Inlet) The professional ventilation system is composed of an air inlet window and a cooling fan, which can be connected to an advanced environmental control system to provide different ventilation times according to different chicken ages and solar terms, to ensure that the chickens will not get diseases.· Ventilation Fan : 50'' or 36" (1.1KW,380V,50HZ)
5. Automatic Cooling Pad System Cooling Pad can adjust the temperature and humidity inside the chicken house. When the water pour from the cooling pad, it will take away the heat.· Cooling Pad : Customized
6. Automatic Power Control and Environmental System The environmental control system is the mian part. Usually this system is based on previous experience to a certain degree of system preset, to ensure that farmers who has no experience can also adjust the environment according to our advice.· Environmental Controller· Electrical Control System

Floor Raising System	Storage System	Silo, hopper
	Pan Feeding System
	Nipple Drinking System	Nipple Drinker
		Water Meter, Regulator, Doser
		Other Accessories
	Environmental Control System	Ventilation Fans
		Evaporative Cooling Pad
		Tunnel Door
		Air Inlet
	Heating System
	Lighting System

Our Advantages
More efficient
It can feed the birds automaticly. Saving labor cost, meanwhile, it also can increase the production.
High quality
All the equipments are made of raw materials, and the service life is 8-10 years.
Automatic management
All the equipment are automaticly controlled, which is more convenient and efficient.

Company Profile
JIMU Machinery Co., LTD was founded in Qingdao, Shandong province in 2018. The corporation engages in researching, designing and manufacturing products for livestock and poultry husbandry. Besides producing and offering feeding system, nipple drinking system, ventilation and cooling fan system and environmental control system, it also engages in the project design and construction of modernized farms for broilers, breeders, layers and swine.
As a factory-direct supplier, we are able to provide our customers with competitive prices while ensuring the highest standards of quality. Our team of experts is dedicated to understanding our customers' needs and tailoring solutions to meet their specific requirements. Whether you are a small-scale farmer or a large-scale poultry producer, we have the expertise to design and deliver customized solutions.
FAQ
1.Q: Are you the direct manufacturer or trading company?
A: We are the manufacturer, and we have more than 20 years' experience of poultry farm equipment .
2. Q: Can the products be customized?
A: We can produce the products according to your detailed requirements.
3. Q: What's the MOQ of the products?
A: we always suggest you the economic quantities for you to save your budgets.
4. Q: What do you have for the poultry equipment?
A: We have feeding pans system , drinking system, environmental controller system, ventilation system.
5. Q: What information are you supposed to provide to get a solution quotation?
A: a. The size of the Chicken farm and Chicken house (Length*width*height);
b. The quantity of chickens in one farm or one chicken house;
c. The weight of chickens when they're for sale in the market;
d. Chicken farm location and local climate condition (temperature, humidity...);
6. Q:What service we can offer :
A: a.Poultry house design and construction;
b.Equipment production and installation on site;
c.After-sale service.

---
