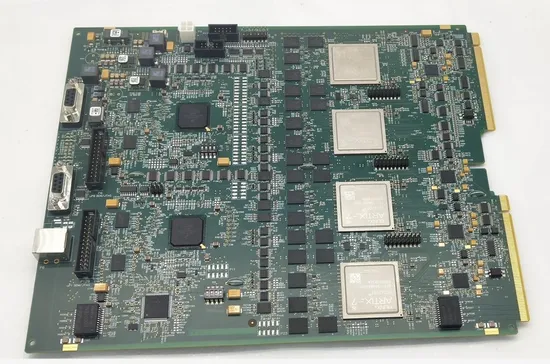

Manufacturer PCB Board Assembly Shenzhen Electronic Custom Business PCBA

Product Description

PRODUCT DESCRIPTION
PCBA/PCB Assembly/Electronic Assembly/PCB Board/Circuit Board

Layer:	1-40 layer
Surface:	HASL/OSP/ENIG/ImmersionGold/Flash Gold/Gold finger ect.
Copper thickness:	0.25 Oz -12 Oz
Material:	FR-4,Halogen free,High TG,Cem-3,PTFE,Aluminum BT,Rogers
Board thickness	0.1 to 6.0mm(4 to 240mil)
Minimum line width/space	0.076/0.076mm
Minimum line gap	+/-10%
Outer layer copper thickness	140um(bulk) 210um(pcb prototype)
Inner layer copper thickness	70um(bulk) 150um(pcb protytype)
Min.finished hole size(Mechanical)	0.15mm
Min.finished hole size (laser hole)	0.1mm
Aspect ratio	10:01(bulk) 13:01(pcb prototype)
Solder Mask Color	Green,Blue,Black,White,Yellow,Red,Grey
Tolerance of dimension size	+/-0.1mm
Tolerance of board thickness	<1.0mm +/-0.1mm
Tolerance of finished NPTH hole size	+/-0.05mm
Tolerance of finished PTH hole size	+/-0.076mm
Delivery time	Mass:10~12d/ Sample:5~7D
Capacity	35000sq/m

OUR SERVICE 1)We offer high quality PCB & PCBA Service for Industrial control Board, Financial Industrial Board, Automatic PCBs, New enery controller PCBAs, Medical equipment printed circuits and other high level circuit boards. 2)We offer one-stop service for PCB , including PCB manufacturing, parts sourcing, X-RAY, AOI testing, Function testing, final assembly if requested. COMPANY PROFILE We have more than 10 years of SMT manufacturing experience, well appointed SMT ,DIP and assembly lines, offering one stop service from SMT,FPC,DIP,EMS, conformal coating, testing, final assembly, component procurement ,design, peripheral products support and so on. we are equipped with High-speed and accurately SMT Equipment ,and we provide a whole range of SPI,AOI,ICT,FCT,X-RAY,ROHS and aging testing for products. All ourshop floors are dust free, all lines are lead free, we are ISO9001 certified company. Why Chose Jiacheng?
With experience of working for global equipment group previously, our core team members are with great experience in EMS manufacturing and management. We devote ourselves into Industrial Control products, Medical products, New Energy products, Auto products, Financial industry products and other high-end products manufacturing. Supper manufacturing ability: 0201 parts can be placed easily for PCB Assembly; Over 10 years International experience, most of products are exports to United States, Canada, Germany, UK, Swiss and other developed countries in America and European. FAQ Clients: Are you a manufacture?
Jiacheng: Yes,we are. Warmly welcome to visit our factory at any time
Clients: Are my files safe?
Jiacheng: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
Clients: What is the delivery time?
Jiacheng: We can arrange preferential processing and control the delivery time as you request
Clients: Do you have MOQ?
Jiacheng: There is no MOQ in Grandto.We are able to handle Small as well as large volume production with flexibility.
Clients: What is the payment term?
Jiacheng: 100%T/T in advance normally;50% deposit,50% balance by T/T before shipment
Clients: Shipping cost?
Jiacheng: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost
