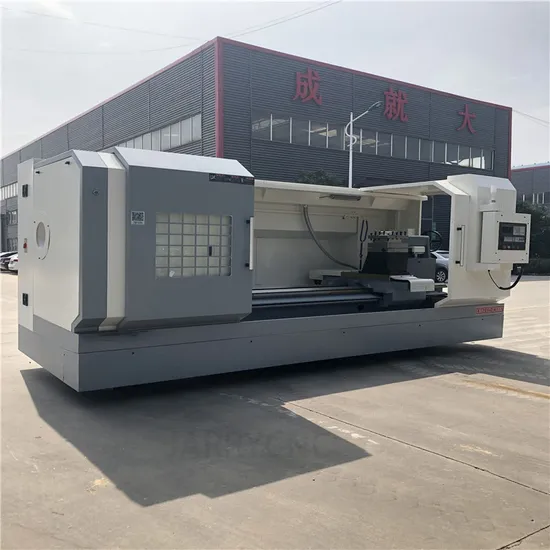

Ck6150 Lathe Machine CNC Heavy CNC Lathe Machine High Precision High Speed Multifunctional Metal Machine Flat Bed CNC Lathe

Product Description

Product Parameters

Specification
Item	Decription	CK61125		CK61100		CK6166	CK6180
1	Max.swing over bed (mm)	Φ1250		Φ1000		Φ660	Φ800
2	Max.swing over toolpost (mm)	Φ900		Φ650		Φ380	Φ560
3	Distance between centers of spindle to tailstock(mm)	1000/1500/2000/3000/4000/5000		1000/1500/2000/3000/4000		1500/2000/3000
4	Max.machining length(mm)	850/1350/1850/2850/3850/4850		1000/1500/2000/3000/4000		1500/2000/3000
5	Chuck size(mm)	Φ400		Φ400		Φ380
6	Spindle nose and taper style	A2-11		A2-11		A2-11
7	Spindle speed range(RPM)	30-830		30-830		30-1200
8	Spindle bore dia.(mm)	Φ105		Φ105		Φ105
9	Spindle power(KW)	15KW		11KW		11KW
10	Torque of Feed Motor(X/Z,· N/M)	15/20		15/20		12/15
11	Rapid traverse speed(X/Z, M/MIN)	4/8		4/8		5/8
12	Tool Post Stations No.	4/6/8		4/6/8		4/6/8
13	X/Z Accuracy of positioning repeatability	0.01/0.01		0.01/0.01		0.01/0.01
14	Quill diameter(mm)	Φ100		Φ100		Φ90
15	Quill travel(mm)	250		250		235
16	Taper of quill	MT6		MT6		MT5
17	Guideway width(mm)	600		600		460
18	Overall size(L*W*H)(mm)	2800/3700/4200/5200/6200/7200×2000x2200		3600/4100/4600/5600*1950*2000		3320/3830/4830×1600x1830
19	Net Weight(KG)	4500/5000/5500/6000/6500/7000		4200/ 4800/5600/6700		3900/4400/5200	4100/4600/5400
Standard Accesseries:Ø500-3Jaw-Chuck;4 Station Electrcal Tool Post;Coolant System;Automatic lubrication System;Working Lamp.
Option:
AC Servo Motor To Drive Main Spindle
6 or 8 Positions Turret Tool-Post
Pneumatic or Hydraulic Chuck

Product Description
Product Description
CK6150 big bore automatic low cost cnc lathe machine for metal cutting programming High precision of machine tool, the spindle adopts Harbin bearing HRB high precision double ball bearing support, low noise, high precision and good stability.
2. The CK6150 cnc lathe machine bed body guide is refined by ultrasonic quenching, high hardness and good rigidity.
3. The CK6150cnc lathe machine electric four-position tool holder is positioned with precise gear positioning, and the positioning accuracy is high.
4. The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
5, wide CNC system adopts several system or Cain emperor and other well-known brands at home and abroad, the hybrid stepping motor driver or optional ac servo motor drive, can also according to user's request matching other systems.
6.CK6150 lathe cnc machine Easy to operate, especially suitable for complex parts or high precision machining of high-volume parts, which is also the first choice for numerical control teaching.
7. The CK6150 cnc lathe tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.

Our Advantages

More Products

TC50-500Skewed bed control digital lathe

CQ6130A General Lathe

C6253x1500 General Lathe

CK6140x750 Flat bed CNC lathe

CK6180x1000 Flat bed CNC lathe

VMC550L Vertical Machine Center

Company Profile
Chizhou Jarry CNC Machinery Co., Ltd was established in July 2014.
We supply CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories. We also supply other machinery for our clients all over the world. Annual sales is over ten million USD. Our machines has been exporting to Europe, Asia, Africa, South America, North AmericaAustralia and others, realiable after-selling serviceOur company has established perfect hassle-free service system in quick response, which covers pre-sales, sales and post-sales to providespecialized and standardized services in quick response for the customers and safeguard the rights and interestes of the customers.
Our company offers variety of CNC Machining Center, CNC Lathe and other machine tools which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

exhibitions

Certifications
Packaging & Shipping
FAQ
1. What is the payment Terms ?
A : T/T or L/C ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. what is your company mainly produces ?
A : Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories, etc...
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the packaging of the machine?
A: The standard packaging of the machine is wooden pallet with plastic film.

---
