Fbk-13DC Hualian Automatic Heavy-Duty Bags Bag Sealing and Sewing Stitching Packaging Machine for Feed/Fertilizer/Flour/Rice/Engineering Plastics/Raw Material

Product Description

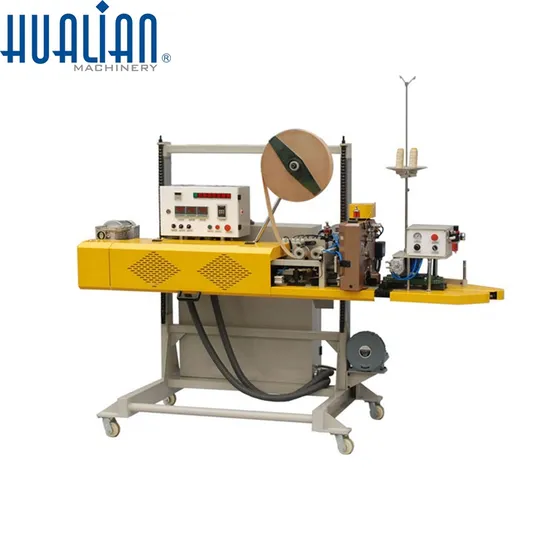

Hualian Automatic Heavy-Duty Bags Heat Sealer
Product Description
Description:
FBK series one-lined sealing and stitching automatic packaging machine fit for packaging of single layer Kraft paper, multi-layer Kraft paper, paper/plastic laminated bag. . It could automatically finish the processes of dust-clean, stitching, thread-cutting, trimming, binding the edge, cutting off, heat seal, pinching, count etc. After sealing, stitching, binding edge, hot pressing, the sealing performance of bags is very excellent, which have the advantage of dust-proof, moth-eaten proof, pollution proof and could protect the packaging appropriately.

Features:
1 This series adopt the advanced technology of light, electricity, and mechanism to guarantee its full automation and high performance.
2. There are 9 standard models for clients selection.

Paremeter

Model	FBK-13C	FBK-13DC	FBK-14C	FBK-14DC
Voltage(V/Hz)	AC 380/50
Gross Power(KW)	4	4.5	5.5	6
Transmission Power(KW)	0.5*6		0.5*8
Motor Power of Pinch bag sealer (KW)	0.37
Speed (m/min)	8.5
Paper tape	o	o	o	o
Deduster	×	o	×	o
Applications	Multi-layer paper bag,paper-PE compound bag and 2 in a or 3 in a bag.etc		Multi-layer paper bag,paper-PE compound bag and 2 in a or 3 in a bag,AI-PE inner liner bag or PE bag
External Dimensions (L×W×H) (mm)	2600×950×1800		2800×950×1800
Net Weight(kg)	450	500		550

The minimum distance between the top of bag and inside material should be 170mm.
Sealing temperature:0~400°C
Compressed air consumption:200NI/min,Pressure:5kg/cm2
Sealing height:900~1400mm
Deduster power: 0.6KW
Exhaust device is optional.
Letter "C" in the model stands for paper binding device, while "D" stands for deduster.
o= hot-melt paper tape
s = Crepe paper tape
× = Not available

Detailed Photos
Related Products
Company Profile

Main Product

Why choose us:


Zhejiang Top Export Brand
China packaging industry enterprises TOP100
China packaging machinery industry enterprises TOP30

Quality Control:
1.Each Heat Sealer Impulse Sealer with the Eligible Certification inside package
2.Shipping department checks each item before packing, totally avoiding manufacturing defects.
3.The main products have attained European CE certificat

Research And Development:
1.Obtained the national patent 39 items, invention patent 2 items!
2.Drafting up national standard and industry standard for "Plastic Bag Heating Sealer","Semiautomatic Strapping Machine" and "Skin Packaging Machine".

Marketing:
1.Hualian have more than 200 agent network all over the world
2.The products are sold to more than 100 countries around the world.

FAQ Q: Are you a factory or a trading company?
A: We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.

Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.

Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.

Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.

Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.

---
