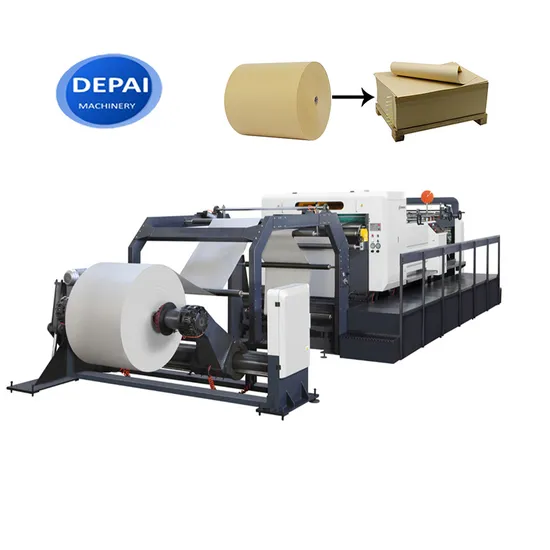

High Quality 1400mm Double Rolls Duplex Paper Cutting Sheeting Machine with Slitting

Product Description

High quality 1400mm double rolls duplex paper cutting sheeting machine with slitting
Product Description According to the technique of the DP product,the specification is intended to describe the funcational requirements of automatic cutting equipment.
The main process flow is: Unwinding-Inserting-Traverse cutting-Convey-Collect.
To ensure the machine cutting fast,continuous and stable,we introduced the advanced technology,and the main transmission system is driven by AC servo motor.To ensure the cutting accuracy is higher and the tool is more resistant to wear,the main high speed rotation of the knife holder and cutters parts are adopted Germany precision bearing rotation and high wear resistance cutting knife
It's easy to operate by using touchscreen control panel.The equipment is widely used in paper industry,paper products distributor and the major packing & printing company.To bring the customers benefits and saving costs.
Product Parameters

Model	DP-1400-1	DP-1400-2	DP-1700-1	DP-1700-2
Reference weight of cutting paper	50-500g/m2	50-500g/m2	50-500g/m2	50-500g/m2
Max diameter of paper	1650mm	1650mm	1650mm	1650mm
Max width of paper	1400mm	1400mm	1700mm	1700mm
Unwinding roll	1 roll	2 rolls	1 roll	2 rolls
Total power	23kw	25kw	25kw	28kw
Cutting length	400-1600mm	400-1600mm	400-1600mm	400-1600mm
Cutting accuracy	±0.4mm	±0.4mm	±0.4mm	±0.4mm
Max cutting speed	300cuts/min	300cuts/min	300cuts/min	300cuts/min
Max cutting meter speed	300m/min	300m/min	300m/min	300m/min
Atmospheric pressure	0.8MPa	0.8MPa	0.8MPa	0.8MPa
Power supply	AC380V/220V×50HZ	AC380V/220V×50HZ	AC380V/220V×50HZ	AC380V/220V×50HZ
Total weight	9000kgs	10000kgs	10000kgs	11000kgs
Dimensions	9000×3900×2350mm	12000×3900×2350mm	9000×4200×2350mm	12000×4200×2350mm

Detailed Photos
Automatic Paper Roll Unwinding Unit
Automatic paper roll unwinding unit is equipped with hydraulic shaftless roll stands two clamps and braking system,which are
easy to use during manipulations.
Knife Holder and Cutting Blade
A total of two knives,one fixed on the base,the other is on the holder for rolling cutting.
Prevent Curling System
Adjusting the roll paper due to the curl of paper,make the paper smooth after cutting.
PLC and Operation Interface
Concise,sensitive and friendly.Using the world"s advanced technology Simens PLC,keep the whole equipment's program and circuit control stable and runs without accident.
Automatic Paper Collection Equipment After cutting,automatic collection of neatly stacked.
Antistatic Device Conveyor
Eliminate the static electricity on the paper,the flow up Taking advantage of the velocity distinction of the
operation of the paper more smoothly. conveyormakes the paper superposition transport.
Counting Marker Automatic squaring system Inserting marks according to the number of sheets of paper set. Automatically adjust the paper to square. Company Profile
Sample
Packing & Delivery Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Related Products
FAQ 1.Q:What does a paper sheeter do ?
A:Sheeting is the process of cutting paper or other similar materials into specific lengths and widths. Sheeters can take large rolls and create smaller sheets of material for any needs. Some machines can only do length and width cuts separately.
2. Q:What is a sheeting machine ?
A:With a sheeting machine, large rolls of material are divided into smaller sheets for a variety of different needs. Some sheeting machines may only cut length or width while others can do both simultaneously. These machines are typically used in a sheet-fed manufacturing or packaging process.
3. Q:What is a roll sheeter ?
A:A device attached to the feeder section of a sheetfed offset lithographic press that allows a continuous roll or web of paper to be used in lieu of cut sheets. A roll sheeter automatically cuts a roll of paper into individual sheets just prior to feeding into the press.
4.Q:What is a sheeter ?
A:A machine used to form something into sheets, such as paper or cloth.

---
