New Original Optoelectronic device MHK2512RGTD Plug-in Support BOM Fast delivery

Product Details

Product Description

Product Description
Factory

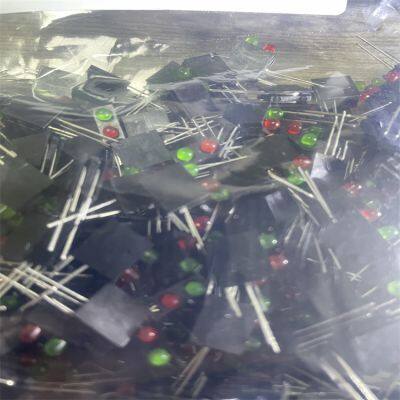

MHK2512RGTD
Luminous color: red light, plain green/yellow green lens color: foggy red, foggy green main wavelength: 568nm; 628nm Power: 78mW Luminous angle: 80 °; 120 ° C working temperature: -25 ℃~+85 ℃ LED cargo kit housing dual LED
Lianyungang Meihua Electronics Technology Co.,Ltd
FEATURES
High intensity and reliability
LOW POWER CONSUMPTION
IC compatible, Easy assembly
LONG LIFE SOLID STATE RELIABILITY
Pb FREE PRODUCTS(Compliant with EU’s RoHS.)
.
Description
5mm diameter package
Emitted color：
Yellow Green
R:Red
Chips materials：
1. G: GaAlInP/GaAs
2. R: GaAlInP/GaAs
3.
Lens Type
1. Green Diffused
2. Red Diffused
3
Absolute Maximum Ratings(Ta=25℃) LED1
Parameter
Symbol
Rating
R G Unit
Power Dissipation Per Segment PAD 78/78 mW
Peak Forward Current Per Chip
（Duty=0.1,1KHZ）
IPF 120/120 mA
Average Forward Current
IF 30 mA
Reverse Voltage VR 5 V
Operating Temperature Range TOPR -25℃ to 85℃
Storage Temperature Range TSTG -40℃ to 85℃
Optical-Electrical Characteristic(Ta=25℃)
Notes:
1. ±10%。 Tolerance of Luminous Intensity ±10%.
2. ±0.05V。Tolerance of Forward Voltage : ±0.05V.
Symbol
Parameter
Test Condition
Min
Typ
Max
Unit
VF
Forward Voltage
R:IF = 5mA - 2.0 2.6
V
G:IF = 5mA - 2.2 2.6
IR
Reverse Current
R:VR=5V - - 100
uA
G:VR=5V - - 100
λp
Peak Wavelength
R:IF = 5mA - 636 - nm
G:IF = 5mA - 574 -
λd
Dominant Wavelength
R:IF = 5mA - 628 - nm
G:IF = 5mA - 568 -
2θ1/2
Viewing Angle
R:IF = 5mA - 80 -
deg G:IF = 5mA - 120 -
Iv
Luminous Intensity
R:IF = 5mA - 20 - mcd

---
