4yzp-4D Corn Harvester/China Corn Harvester/ Disc Corn Storage Harvester/4 Rows Corn Combine Harvester

Product Description

One, 4YZP-2D Corn Harvester
1,Feature:
Suitable: mature corn
Function:Corn picker + Peeler + Stalks cutter
Grain: to be collected automatically and fell in down tray while peeling
4*4 driving and suitable for hilly ground
Compact structure, small turning radius, is suitable for small field
It even can cross rows to collect the maize
High rate of peeling, less broken grain
Named brand engine, enough power
Strong gearbox and reliable
2,Parameters:

No	Item	Unit	Value
1	Model	/	4YZP-2D
2	Style	/	Self-propelled
3	Rows	/	2
4	Working width	mm	1270
5	Unloading height	mm	1830
6	Working speed	km/h	2~7
7	Working efficiency	hm2/h	0.2~0.5
8	Dimension(L*W*H)	mm	5325×1925×2650
9	Tank Volume	L	1338
10	Weight	kg	2980
11	Engine Power	hp	70
12	Engine Rotary speed	rpm	2400
13	Diesel consume	kg/hm2	≤20
14	Drive & Gear box	/	Mechanical & 4 wheels driving
15	Steering System	/	Hydraulic Steering
16	Peeling rollers Qty	Piece	8
17	Fan Qty	Piece	1
18	Stalks Chopper	/	Rotary Blade
19	Wheelbase	mm	1990
20	Guide wheels distance	mm	1280
21	Drive wheels distance	mm	1300
22	Guide wheels	/	6.50-16
23	Drive wheels	/	9.5-20

3,Business terms
Delivery date: 20 days Payment term: T/T Price: US$ /SET MOQ: 2 units / 40'HQ Warranty: 1 Year (excluding quick-wear parts)
two, 4YZP-3A CORN HARVESTER
1,Feature: Suitable: Immature corn (green stalk) Function:corn picker + peeler + Chop Stalker (chopped stalks/cob husk into the field) Grain: to be collected automatically and fell in down tray while peeling Compact structure, small turning radius, is suitable for small field It even can cross rows to collect the maize High rate of peeling, less broken grain Named brand engine, enough power Strong gearbox and reliable Visual imaging system 2,Parameters:

Technical specification sheet
Overall	Model	4YZP-3A
	Type	Wheel self-propelled
	Rows of cutter	3
	Width of Cutting	1800 mm
	Application row width	450-650 mm
	Cutting center Distance	550 mm
	Productivity	0.3-0.55 hectare/hour
	Total Weight	5500Kg
	Working Dimensions(L×W×H)	6460×2300×3500 mm
Engine	The model of engine	WP4.1G140E301
	Engine	Diesel engine
	Power	160hp/140hp
	Rated speed	2300 r/min
	Oil consumption	≤40kg/ hectare
	Oil tank	235L
Chassis	Gear-box	Mechanical (3+1)*2
	Steering	Hydraulic
	Minimum ground clearance	300mm
	Minimum turning radius(L-R)	5200-5400mm
	Tire Size Front/Rear	13.6-24 / 10-15
	Wheel track Front/Rear	1620-1450mm
	wheel base	2647mm
	Working Speed	2~6Km/H
	Cabin	General
Grain Tank	Volume	2000L
	Unloading grain height	2070mm
	Unloading type	Hydraulic
Peeler Machine	Stripping Type	Rubber Roller
	Stripping Size	Φ72*830
	Quantity of Stripping Roller	16
Straw returning machine	Model	1JH-180
	Working width	1800mm
	Type	Free swinging knife type

3,Business terms *Payment term: T/T, *Loading: 1 unit for 40'HQ *EXW Price: US$**** 40hp engine and US$**** for 160hp engine *Warranty: 1 Year ( not including quick-wear parts)

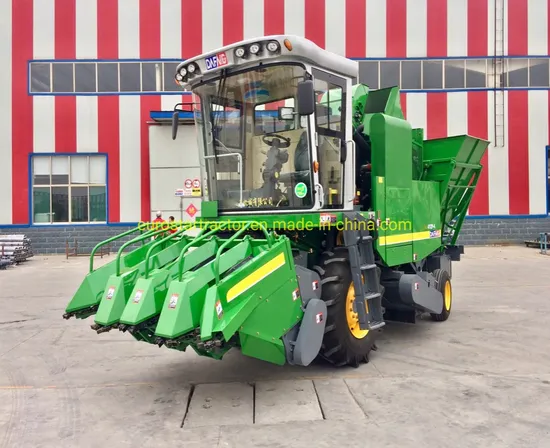

three, 4YZP-4D Corn Harvester

1,Feature: Suitable: Immature corn (green stalk) Function: corn picker + peeler + Chop Stalker (chopped stalks/cob husk into the field) Grain: to be collected automatically and fell in down tray while peeling Compact structure It even can cross rows to collect the maize High rate of peeling, less broken grain Named brand engine, enough power Strong gearbox and reliable Visual imaging system 2,Parameters:

No.	Item	Design
1	Harvester Model	4YZP-4D
2	Harvester Type	Wheel self-propelled
3	Engine type	YC4A
4	Engine Rated Power	200hp/175hp
5	Engine Rotary speed	2300rpm
6	Overall Weight	7260kg
7	Overall dimension	6930*2560*3340mm
8	Working rows	4 rows
9	Working width	2340mm
10	Application row width	450-650mm
11	Cutting center distance	550mm
12	Max unloading height	2150mm
13	Conveyor Structural style	Chain scraper
14	Conveyor Max Crossing altitude	3360mm
15	Mini. Ground Clearance	300mm
16	Working speed	1.84~5.2km/h
17	Productivity	0.4~0.65hm²/h
18	Fuel consumption	≤40kg/hm²
19	Snapping roll/board type	Roll type
20	Snapping roll/board size	Φ92*862mm
21	Peeling roller form	Rubber Roller
22	Peeling roller size	Φ72*830mm
23	Qty of peeling rollers	20 pieces
24	Fan style	Centrifugal
25	Fan Diameter	220mm
26	Corn cub tank Volume	2000L
27	Corn cub tank unloading type	Hydraulic
28	Grain driving type	Hydraulic cylinder
29	Straw residue chopper working width	2250mm
30	Straw residue chopper Position	Between the front and rear wheels
31	Gearshift method	Mechanical
32	Drive Axle Type	Mechanical Gearbox+Reduction of the loop Box
33	Drive Axle driving type	Mechanical
34	Steering Type	Power steering box
35	Steering Power mode	Hydraulic
36	Brake Type	Disc
37	Brake Power mode	Hydraulic power assisted
38	Wheel Base	2930mm
39	Wheel Track (Guiding Wheel)	1640mm
40	Wheel Track (Driving Wheel)	1750mm
41	Tyre Size (Guiding Wheel)	10-15
42	Tyre Size (Driving Wheel)	15-24

3,Business terms
Delivery date: 20 days Payment term:T/T, Price: US$**** for 175hp engine, and US$**** for 200hp engine *Loading: 1Set/40HC *Warranty: 1 Year ( excluding quick-wear parts)
