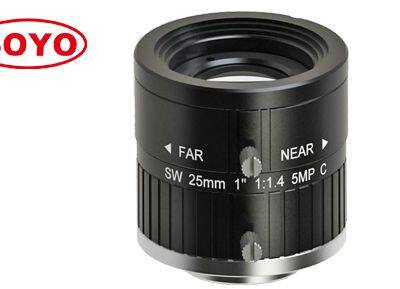

| Model | S1WIR2514-5M | |
| Resolution | 5 Megapixel | |
| Format | 1" | |
| Focal Length | 25mm | |
| Aperture(Close) | F1.4 Manual Iris | |
| Angle of View (°) DxHxV | 1" | 28.6*21.5*15.4 |
| M.O.D | 0.6~0.8m | |
| B.F.L | 11.46mm | |
| M.F.L | 8.97mm | |
| T.T.L | 53.7mm | |
| Dimension | Φ42*36.21mm | |
| Distortion | -1.39% | |
| Wavelength | 900~1700nm | |
| Mount | C | |
| Weight | 180g | |
