20L (Double station) Spray Bottle /Spray Barrel/Sprayer Special Blow Moulding Machine / Special Blow Molding Machine

Negotiable 1 SET (MOQ)

Basic Info.

Model NO.
Sprayer bottle-20LD
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
10 Years
Transport Package
Wooden Base
Specification
20L
Trademark
KAIDOO
Origin
China
HS Code
84773010
Production Capacity
500sets/Year

Product Description

BRIEF INTRODUCTION
------------ZHANGJIAGANG KAIDOO PLASTIC TECHNOLOGY CO.,LTD
Kaidoo Technology is located in the beautiful Riverside City - Zhangjiagang. The company use European and American technology, supply automatic blow molding machines,(suitable for the production of 5ML-3000L plastic bottles, plastic buckets, drum,tool box, toys, fuel tanks,table panel,plastic pallet,automobile part and other products), and supply Blow mould ,Injection mould,Auxiliary equipment. The company has a a large number of outstanding skilled workers and engineers with more than 10 years of design and manufacture of various hollow equipment and maintenance services experience.
We firmly believe that only the innovation can promote development, and only through cooperation we can find win-win solution. We are sincerely looking forward to working with you full cooperation!
ENTREPRISE CULTURE
Kaidoo Technology persisted "the talented as well as the staff is the first resources" idea,and "the science and technology is the development of the enterprise source power, the innovation is enterprise's soul" the management idea,in the staff the positive initiative "the unity cooperation,grows together" the team idea ;The initiative " the good faith, is highly effective, is satisfied" the service idea,carries out "the autonomy from, asks really to strive for realism" the staff personal integrity. Through a serious of enterprise culture construction, establishes one to have the cohesive force and the team cooperation spirit, the study high quality staff troop.
WORKSHOP
MACHINE SPECIFICATION

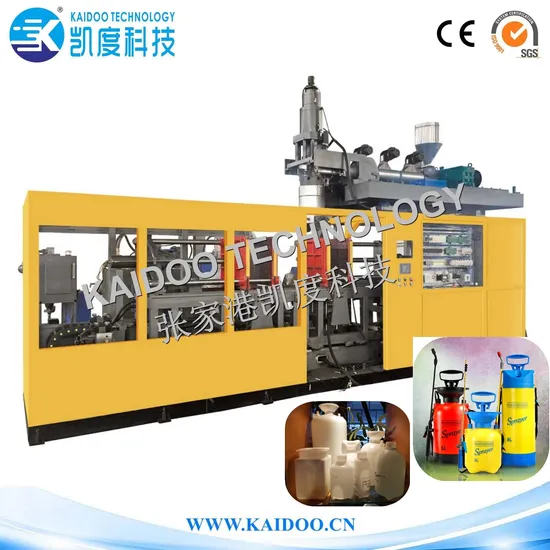

MODEL KD90DB (Double station & Single head )
This model is fixed open-closing clamping,Double station series machine, Max for making 20L containers,suitable for making small toys, auto parts, high pressure sprayer and so on,double production,save operator and other advantages. The machine is compact structure, fast start-up speed, energy saving and so on. It can be equipped with internal thread rotary bottom blow system.

Specification Technical Parameter
Machine model KDB90DB-SSB
Material PE,PP
Max container capacity 20Liter
Machine Dimension (LxWXH) 7 x 2.6 x 3.9 m
Machine weight 16 T
Clamping Unit
Mould platen size (WxH) 680x600mm
Platen opening stroke 300-850mm
Max mould size (WxH) 460x600mm
Clamping force 130KN
Power
Oil pump driving power 11 KW
Max driving total power 48 KW
Blow pressure 0.8Mpa
Air consumption 0.7M3/min
Cooling water pressure 0.3Mpa
Water consumption 60L/min
Average energy consumption 35-40kw
Extruder unit
Screw diameter 90
Screw L/D ratio 24:1
Melting capacity for HDPE 130 kg/hour
Number of heating zone 4 zone
Screw heating power 17.6 kw
Extruder motor power 37 kw
Die head (Accumulator head)
Number of heating zone for single die head 5 zone
Heating power for single die head 20 KW
Max die-pin diameter 180mm
Accumulator capacity (HDPE) 3L (2.25KG)
