| US$19,300.00-37,100.00 | 1 Set (MOQ) |
| Model | WS560 | WS700 | WS850 |
| Main Motor | 132KW | 160KW | 220kw |
| Auto Lubricating Oil Pump | 0.55KW | 0.55KW | 0.55KW |
| Dial Power | 1.5KW | 1.5KW | 3KW |
| Dry Oil Pump | 0.37KW | 0.37KW | 0.37KW |
| Double Bag Dust Collector | 3KW | 3KW | 3KW |
| Capacity | 1.5-2 Tons/Hour | 2.5-3 Tons/Hour | 3.4-4.5 Tons/Hour |
| Overall Size | 2300*1300*1700MM | 2500*1500*1900MM | 2950*1500*2160MM |
| Weight | 5 Tons | 6 Tons | 11Tons |
| Size | Less than 8mm | Less than 8mm | Less than 7mm |
| Moisture | Less than 15% | Less than 15% | Less than 15% |
| Control Cabinet | 1 | 1 | 1 |
| 101 | Drum Wood chipper | Power:110kw. Feed size:300*680mm. Max chip size:300mm (Diameter) Feed belt conveyor:6M, Machine weight:7tons |
| 102 | Belt conveyor | 800-1000 Power:3kw, Length:8M |
| 103 | Silo &Belt conveyor | Silo size:8CBM Model:800 Power:3kw, Flat conveyor Length:4M (under) |
| 201 | Belt conveyor | 800-1000;Power:3kw, |
| 202 | Hammer mill | Power:132kw. With screw conveyor under the hammer mill. With legs for support. Inner 15mm mesh Qty of hammers inside:96pcs Weight:5.5tons, |
| 203 | Belt conveyor | 800-1000;Power:3kw, |
| 301 | Silo &Belt conveyor | Silo size:8CBM Model:800 Power:3kw, Flat conveyor Length:4M (under) |
| 302 | Belt conveyor | Model:800-1000;Power:3kw, |
| 303 | Hot wind stove | RF-60 |
| 304 | Rotary dryer | Diameter:1800mm. Length:24000mm. Power:11kw. Don't contain base(foundation) |
| 305 | Air-lock | Power:2.2kw |
| 306 | Fan blower | Power:18.5kw |
| 307 | Cyclone | Φ800x2 |
| 308 | Air lock | Power:2.2kw |
| 401 | Belt conveyor | Model:800-1000;Power:3kw, |
| 402 | Belt conveyor | Model:800-1000;Power:3kw, |
| 403 | Hammer mill | Power:132kw. With screw conveyor under the hammer mill. With legs for support. Inner 6mm mesh Qty of hammers inside:96pcs Weight:5.5tons, |
| 404 | Cyclone | Θ1200 |
| 405 | Air lock | Power:2.2kw |
| 406 | Fan blower | Power:22kw |
| 407 | Pulse dust collector | 96x135# |
| 501 | Roll store silo | Size:SO-22 Power:7.5kw Roll design inside. |
| 502 | Pulse dust collector | 96x135# |
| 503 | Fan blower | Power:5.5kw |
| 504 | Fan blower | Power:1.5kw |
| 505 | Dust collect bags |

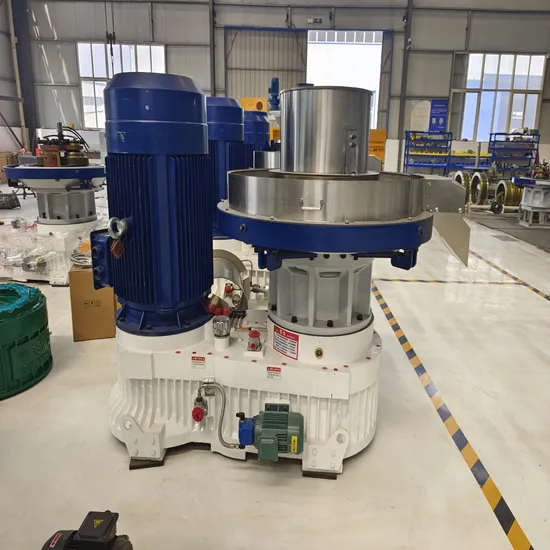

| 601 | Pellet mill | Power:132kw High efficient pellet mill. One set capacity:1.5-2.5tons/h Stainless steel ring die inside. With automatic lubricant device; Pellet diameter range:2-8mm. Inside install one set spare part. With input feeder |
| 602 | Flat conveyor | Power:2.2kw |
| 603 | "Z" type conveyor | Power:3kw Width:800mm. Up flat length:1000mm; Down flat length:1000mm. Total:7000mm |
| 604 | Air-lock | Power:2.2kw |
| 605 | Fan blower | Power:15kw |
| 606 | Cyclone | |
| 607 | Pellet cooler | Power:0.37kw; With vibration motor. With Vibrate screen |
| 701 | "Z" type conveyor | Power:3kw Width:800mm. Up flat length:1000mm; Down flat length:1000mm. Total:7000mm |
| 702 | Store silo | Model:SL-5 |
| 703 | Packing machine | Automatic weigh; With Sewing head With bags conveyor Power:0.15kw |
| 801 | Electric cabinet | Whole line motors control center. Pellet machine main motor,hammer mill main motor. All soft starter. |
