Kava Cumin Cassava Tea Bay Leaf Carrot Grinding Machine Mill

Product Description

Product Description

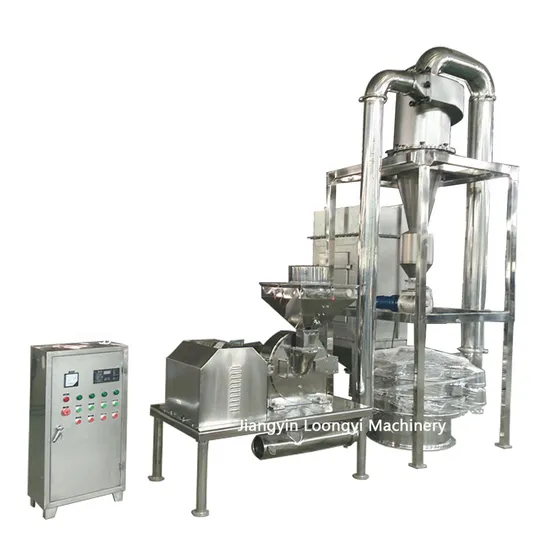

FU Series Universal Grinder Unit
Product Introduction:This machine is suitable for pharmaceutical, chemical, food, magnetic materials, powder, etc., is crushing,
vacuuming and continuous discharge as one of the new generation of grinding equipment. Working Principle:This machine consists of a crusher, a cyclone separator, a pulse dust removal box, a fan, an electrical control box,
pipelines, brackets, etc.
This machine utilizes the relative motion between the movable toothed disc and the fixed toothed disc to crush the
crushed material through the impact, collision, and friction of the cutting disc.
The crushed powder is subjected to the centrifugal force of rotation and the gravitational force of the fan before
entering the cyclone separator and being discharged from the fan. The ultra fine dust then enters the pulse dust
removal box. The ultra fine dust is shaken off at the bottom of the dust removal box by the pulse meter and recovered
through a stainless steel bucket.
The whole machine is designed according to GMP standards and made entirely of stainless steel materials, with no
dust flying during the entire production process.
Product Parameters
Technical Data:

Model	FU-30B	FU-40B	FU-60B	FU-80B	FU-100B
Capacity kg/h	60-300	100-600	300-1200	400-2000	600-3000
Spindle speed rpm	3800	3400	2800	2200	1500
Feeding Size mm	6	10	12	15	15
Crushing fineness mesh	20-120	20-120	20-120	20-120	20-120
Crushing Motor kw	5.5	11	18.5	37	55
Blower motor	3	4	7.5	11	18.5
Air lock valve motor kw	0.55	0.55	1.1	0.75	0.75
Overall size (LXWXH) mm	3200×850 × 2380	3500×900 × 2380	6600×1100×2380	7800×1100 ×2500	9980×1280 ×2800
Weight	880	1200	2000	3000	6000

Detailed Photos
Product Pictures:
Company Profile
With more than 20 years of manufacturing experience, Jiangyin Loongyi Machinery Co.,ltd specialized in manufacturing powder
grinding machine, mixing machine, sifting machine, granulator machine, packing machine, drying machine, conveying machine, slicing
machine, cleaning machine and so on, which are widely used in foodstuff, chemical, pharmaceutical and other industries,etc.
Since its foundation, Loongyi has always adhered with the principle of quality firstly and technology is life. The company owns more than
50 employees, about 1000m2 of office space, cover about 9000m2 of manufacturing space. With customer concentric idea as base, it
takes every detail seriously in the process of production to assure high performance and quality of each part and equipment as well as
the stable operation in more than 80 countries around the world. Our products have been exported to such countries and regions as
USA,Canada, Europe, Japan, Australia,Africa,South Asia,middle Asia. We also welcome OEM and ODM models. Our products are
approved by CE and ISO.
Loongyi Machinery locates in No. 236 Yungu Road, Zhutang town, Jiangyin City, Wuxi City, Jiangsu Province, China. It takes about 20
minutes to take the high-speed train from Shanghai to our city; It takes about 40 minutes to drive from the high-speed railway station to our factory. There is airplane in our city, so transportation is very convenient.
Over these years, our company has made elaborate design and improvement,on the basis of absorbing features and advantages of
similar products both at home and abroad.
The products have won good reputation and praises among all customers, from at home and abroad,too.

---
