Heavy Duty Conventional Lathe with Slide Plate Knife Tool Rest Bed Saddle and Tailstock Move Quickly

US$38,000.00-60,000.00 1 Set (MOQ)

Basic Info.

Model NO.

CW61160

Type

Horizontal Lathe

Processing Accessory

Conventional Metal Machining

Guide Rail

Horizontal Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Spindle Motor and Manual Feeding

Controlling Mode

Manual Control

Automatic Grade

Manual

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Spindle Hole

130mm

Spindle Taper

Metric 140#

Width of Bed

780mm

Carriage Travel

650mm * 280mm

Chuck

4 Jaws Chuck

Sleeve Diameter

160mm

Sleeve Taper

Metric80#

Sleeve Travel

300mm

Rapid Feed:Long/Cross

3400mm/Min,1700mm/Min

Main Motor

22kw

Coolant Motor

0.15kw

Rapid Feed Motor

1.5kw

Distance Between Centers

1.5m,2m,3m,4m,5m,6m,8m,10m,12m Optional

Metal Machining

Shaft Parts, Cylindrical and Disc Parts of Differe

Cutting Tools

HSS and Carbide Steel Cutters

Transport Package

in Wooden Case

Specification

Max. working weight 8000kg

Trademark

GESEN

Origin

China

HS Code

8458190000

Production Capacity

500sets/Year

Product Description

Product Description

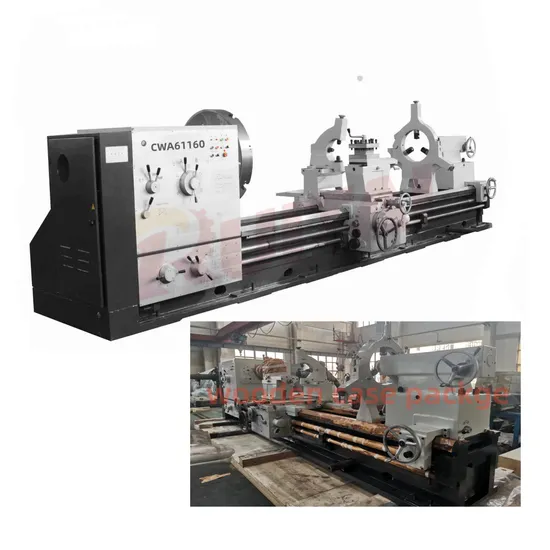

CONVENTIONAL LATHE HEAVY DUTY
The CWA series horizontal machine tools are universalconventionallathe, which are applicable to machining shaft parts, cylindrical and disc parts of different materials with HSS and carbide steel cutters.
The conventional lathe is capable of turning, external circle, end face, groove cutting, cutting, boring, turning and boring of inner cone, various threads and other processes.
The main shaft of the machine adopts a three-support structure, and the whole bed forms a box shape, so that the bed has a high rigidity.
The machine tool is equipped with a separate oil pump for forced lubrication. The slide plate, knife rest, bed saddle and tailstock can move quickly, making the machine tool have the characteristics of strong rigidity, high efficiency, safety and reliability, convenient operation and beautiful appearance. Detailed Photos
Product Parameters

CONVENTIONAL LATHE 8000kg
MODEL:	CWA61100 CWA61125 CWA61140 CWA61160
Max.weigth of workpiece	8000kg
Max swing over bed	1000mm 1250mm 1400mm 1600mm
Max swing over cross slide	620mm 870mm 1000mm 1200mm
Distance between centers	1.5m,2m,3m,4m,5m,6m,8m,10m,12m
Width of bed	780mm
HEAD STOCK
Spindle hole	φ130mm
Spindle taper	Metric 140#
Spindle speeds	3.15-315r/min or 2.5-250r/mm. Grade:+21,-12
GEAR BOX - THREADS & FEEDING
Metric threads range(kinds)	44/1- 120mr
Inch threads range(kinds)	311/4-24/inch
Moudle threads range(kinds)	45/0.5-60mm
Diametral threads range(kinds)	381/2-56DP
Longitudianal feeds range(kinds)	56/0 . 1- 12mm
Cross feed range(kinds)	56/0 .05-6mm
Rapid feed:long/cross	3400mm/min,1700mm/min
TOO L POST
Distance between Center&Tool	48mm
Tool section	45×45mm
CARRIAGE
Cross slide trave	650mm
Compound rest travel	280mm
TAILSTOCK
Sleeve diameter	φ160mm
Sleeve taper	Metric80#
Sleeve travel	300mm
MOTOR
Main motor	22kw
Coolant motor	0.15kw
Rapid feed motor	1.5kw

Packaging & Shipping
