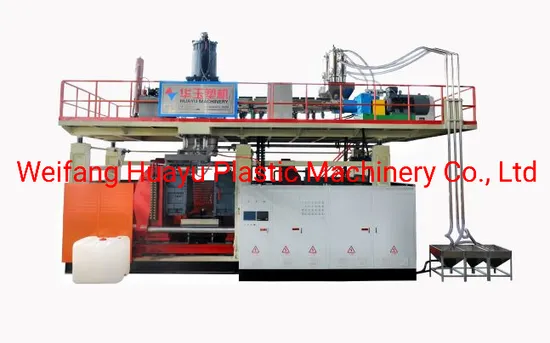

IBC Tank Auto Production Blow Molding Machine with External Steel Cage Making Line

Product Description

Product Parameters

Item	Value
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary product
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Application	IBC tank
Plastic Processed	HDPE
Place of Origin	China
Country	Shandong
Brand Name	HUAYU
Year	2022
Voltage	Customized
Dimension(L*W*H)	Customized
Hollow part volume	1000L
Clamping Force (kN)	1800
PLC Brand	Siemens
Screw L/D Ratio	30
Screw diameter (mm)	110mm
Output (kg/h)	550kg/h
Automation	Automatic
No. of Screw Heating Zone	6
Screw Heating Power(kW)	90KW
Extruder Motor Power(kW)	110KW
Mold Platen Size(Width)(mm)	1500mm
Mold Platen Size(Height)(mm)	1600mm
Air Pressure(MPa)	0.8Mpa
Air Comsumption(m³/min)	1.2m³/min
Die Head Heating Power(kW)	80KW
Accumulator Capacity(Kg)	35Kg
Power (kW)	390
Weight (T)	70
Key Selling Points	High accuracy
Warranty	1 year
Applicable Industries	Manufacturing Plant, Other
Showroom Location	None
After-sales Service Provided	Overseas Service Provided
Type	Extrusion Blow Making Machine

Packaging & Shipping
Container transport to Qingdao port ,China. container size and quality according to the machine and other goods.Impotant parts in box.antirust encapsulation for easy rust parts.Other parts fixed in container.
Company Profile
FAQ
1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(50.00%),South Asia(30.00%),Africa(10.00%),South America(5.00%),Mid East(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Large Blow Moulding Machine
4. why should you buy from us not from other suppliers?
Our company focus on blow moulding machine almost 20 years exprience.We focus on large blow moulding machine.Our team leading science and technology in this feild.Our company can make 20-20000L and1-8 layers blow moulding machine.
5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,German

---
