High Speed Drilling Production Line Three Dimensional Drilling Equipment H Beam Drilling Machine H Beam Processing Machine Beam Drill Line

Product Description

Product parameters
Technical Specification of BHD1206A/3
1. Size of workpiece
1.1 H-Beam: web height H: 150 ~ 1250mm flange width B: 75 ~ 600mm
1.2 U-Beam: web height H: 150 ~ 1250mm flange width B: 75 ~ 300mm
1.3 Max. thickness: 80mm
1.4 Length:15m(according the customers)
2. Drilling case
2.1 No.: 3
2.2 Max. drilling dia: emented carbide: ¢30mm
high speed steel : ¢40mm
2.3 hole of spindle: BT40
2.4 motor power of spindle: 3×11KW
2.5 rotation speed of spindle(stepless adjustable):0~2000r/min
3. CNC axes
3.1 No. of axes: 6
3.2 Servo motor power of feeding axes: 3×2KW
Servo motor power of positioning axes: 3×1.5KW
3.3 Moving speed of positioning axes: 0 ~ 10m/min
Moving speed of feeding axes: 0 ~ 5m/min
3.4 Stroke of width checking: 1100mm
Stroke of web checking: 290mm
4. Carriage
4.1 Servo motor power of carriage: 5 KW
4.2 Max. feeding speed: 20m/min
4.3 Max. feeding weight: 10t
5. Atomization cooling system
5.1 No. of nozzle: 3
5.2 pressure of compressed air: 0.8Mpa
5.3 cooling way: internal cooling & external cooling
6. overall dimension(L×W×H) : approx. 6.0×1.6×3.4m
7. weight: approx. 8000Kgs
8. working environment:
Working power: Three phase four wire system 380±10%V 50±1HZ
Control power: 220±10%V 50±1HZ
Operate power: 24V DC
Working temperature: 0ºC ~ 40ºC
Humidity of environment: ≤75%

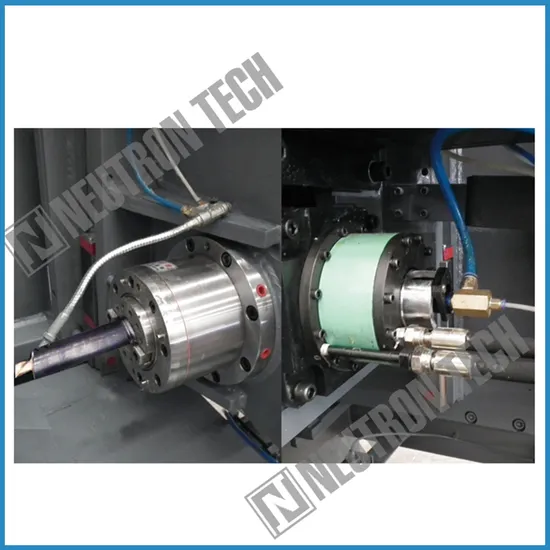

Product display
Other products
Certifications
Company information
Our company is specialized in different kinds of products. We stick to the principle of quality first, service first, continuous improvement and innovation to meet the customers for the management and zero defect, zero complaints as the quality objective. To perfect our service, we make our products with good quality at the reasonable price. The main products are high-speed railing molding equipment, U-shaped column forming equipment, iron tower processing equipment, steel structure processing equipment, sheet processing equipment, flange forming equipment, flame cutting machine, plasma cutting machine, laser cutting machine, hollow glass aluminum spacer Production line, hollow glass warm edge strip production line, furniture production line, CNC engraving machine, hollow aluminum strip, hollow sealant, etc. Its products are widely used in road and bridge construction, construction steel structure, electric power tower, automobile manufacturing, furniture manufacturing, decoration and decoration industries.
Our service
Pre-sale Service
1. We have full stock, and can deliver within short time. Many styles for you to choose.
2. OEM and ODM order are accepted
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
4. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
5. We have rich experience of design, manufacture and sell hardware products, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-7 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please contact with us freely by E-mail or Telephone.
Packaging&shipping
FAQ
Q: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephon
Q: When can you arrange shippment?
A: We usually arrange shippment in 10-30days
Q: Can you provide training for operation CNC machines?
A: Yes, free training in our factory is available.
Q: What you can do if my machines have problems?
A: a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines

---
