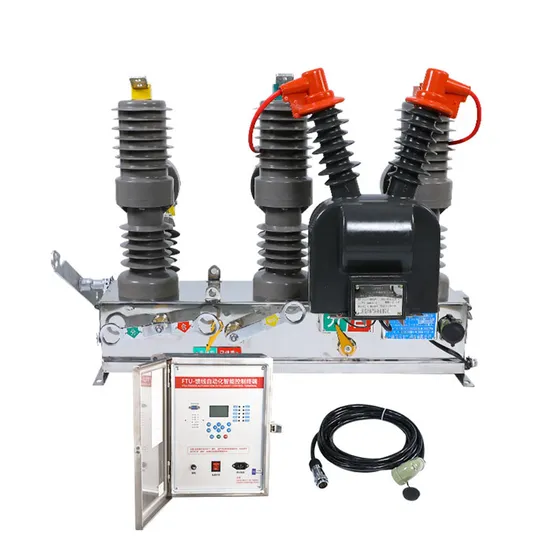

Factory Price 11kv High Voltage Disconnector Switch Isolator Switch Outdoor Vacuum Circuit Breaker

US$418.00-1,024.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZW32-12
Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Vacuum
Installation
Fixed
Structure
Vcb
Poles Number
3
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
ISO9001-2000
Rated Voltage
12kv
Installation Method
Withdrawable
Rated Current
630A/1250A
Rated Frequency
50/60Hz
Material
Steel, Expoxy Resin
Customize
Yes
Model No.
Zw32-12
Size
Medium
Operation Condition
Outdoor
Rated Short-Time Interrupting Current
16/20 Ka
Mechanical Life
10000 Times
Anti-Pollution Grade
Class III
Wind Speed
≤35m/s
Ambient Temperature
-40-40
Altitude
≤2000m
Transport Package
Wooden Case
Specification
pcs
Trademark
SHENGSU ELECTRIC CO., LTD
Origin
China

Packaging & Delivery

Package Size
120.00cm * 80.00cm * 75.00cm
Package Gross Weight
170.000kg

Product Description

Place of Origin: Wenzhou Zhejiang China
Brand Name: SHENGSU
Model Number: ZW32-12/630A
Rated voltage: 12KV
Mechanical life: 10000 times
Custom made: Accept special orders
Type: High Voltage
Frame Material: Stainless steel

ZW32-12 outdoor high-voltage vacuum circuit breaker is an outdoor power distribution equipment with a rated voltage of 12kV and three-phase AC 50Hz. It is mainly used for the opening and closing of load current, overload current and short-circuit current in the power system. It is suitable for the protection and control of power distribution systems in substations and industrial and mining enterprises, as well as places where rural power grids operate frequently. The circuit breaker has the characteristics of small size, light weight, anti-condensation and maintenance-free. It can adapt to harsh weather conditions and dirty environments.
Product Parameters Circuit breaker can be different from the normal use of the above provisions under the conditions of use, then the user's requirements with manufacturers to negotiate, and obtain the consensus of opinion.
No. Description Unit Data
1 Rated voltage kV 12
2 Rated frequency Hz 50
3 Rated current A 630 1250
4 Rated short circuit breaking current kA 20 25
5 Rated peak withstand current kA 50 63
6 Rated short time withstand current (4s) kA 20 25
7 Rated short circuit making current (peak) kA 50 63
8 Mechanical endurance times 10000
9 Rated short circuit breaking current capacity times 30
10 Power frequency withstand voltage (1min)
Phase to phase/earth, between open contacts
kV 42
11 Lightning impulse withstand voltage (peak) kV 75
12 Power frequency withstand voltage on secondary circuit (1 min) V 2000
The conditions of useAmbient air temperature: - 10 ° ºC ~ + 40 ºC
Altitude: not more than 2000 m
The surrounding air can be affected by dust, smoke, corrosive gas, steam, or smoke pollution
Wind speed is less than 34 m/s
Pollution level: 111 level
