Fully Automatic Facial Tissue Machine Line with Automatic Soft Packing

Product Description

Fully Automatic Facial Tissue Machine Line with automatic soft packing
Outline:

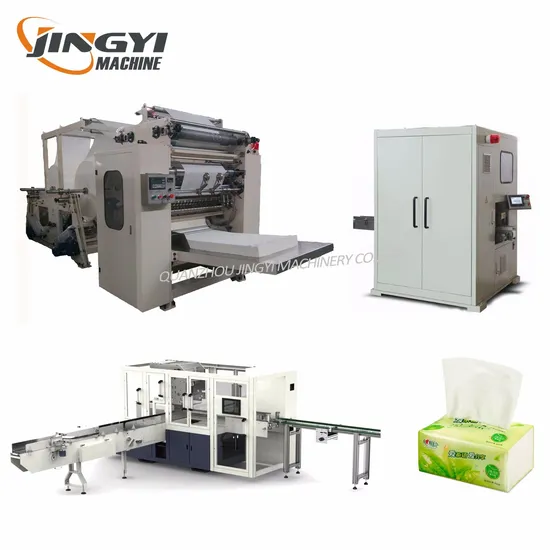

Automatic facial tissue production line is consist of facial tissue folding machine, log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished products. This production line is of high degree of automation, save labor costs, reduce labor intensity, is the best choice of the production of tissue products.

Machine model	Machine configuration	Output produce
CS-180/2-14L facial tissue folding machine	Jumbo roll width 400mm~2800mm Jumbo roll diameter:max 1100mm PLC computer programming Unfold paper:180*200MM Fold paper:90*200MM With embossing unit With edge-embossing unit(can be chosed)	(800~1000)*14*60*8 =5,376000~6,720,000pcs
DHX-150log saw cutting machine	Design speed: about 150cuts/min Operating speed: about 120cuts/min
T80SD automatic facial tissue packing machine	Packing materials:plastic bags Packing speed:30~60bags/min
Belts conveyor	To connect the log saw cutting machine with packing machine

1. CS-180/2-14L Box Drawing Facial Tissue Machine Main features:
CS1802-/14L facial tissue making machine working flow :The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.This machine adopts independent servo motor drive ,and automatic paper tension control. It features of high speed ,nice folding and easy operation . Can order steel to rubber embossing rolls,pneumatically separated. 2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving ,stepless speed additionustment ,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine
5.Make various products width as requirement .
6.Equipped with edge embossing unit to keep the two plies together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safety and easier to thread the web.
Main technical parameter:

Machine model	CS-180/2-14Lmm
Finished products unfolded size	180*210mm±2mm
Folding products size	90*(120-210)±2mm
Raw material width	400-2800mm
Raw material diameter	1100mm
Raw material core diameter	76.2mm
Out put (8 hours)	8000~10000Kg
Embossing unit	Steel to paper or steel to steel, Steel to steel edge embossing ,independent pneumatic regulation
Power	7.5KW Main motor
	3.0KW(2set) Unwind motor
Vacuum suction unit	47KW Fan
Pneumatic system	3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system	Timing belt
Dimension	8700X3500X7000mm
Weight	12~13T

2. DHX-150 single Channel log saw cutting machine The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Main technical parameters

The length of the none cut off facial tissue	minimum 500mm
The Height of tissue	30~130mm
Design Speed	150cuts/min
operating speed	120cuts/min
Round blade outer diameter	Φ610mm
Finished products specification	70~300mm
Paper width	70~110mm
Cutting Length	70~300mm
Left-over Length	20~65mm
Power	11KW
power supply	380V 50Hz
Air source	0.5~0.8MPa
Machine Size	4600*1700*2500mm
weight of machine	2300~2600kg
brake	Parameter setting (auto/manual)
Stepping sharpening knife	Parameter setting (auto)
Pneumatic sharpening knife	Parameter setting (auto/manual)

3. T80SD Automatic Facial Tissue Packing Machine

Technical Specifications	Description	Remark
Scope of application	Facial tissue, hand towel,napkin tissue
Infeed	ASF Full automatic	Five sections of intelligent flexible feeding mode
Max.design mechanical speed	≤ 80 bags/min	Related to specification of packing
Max. stable speed	65 bags/min	Related to specification of packing
Tissue length range (finished product)	120 mm-210 mm	Over this size can be customized
Tissue height range(finished product)	40 mm-100 mm
Tissue width range(finished product)	90 mm-105 mm
Machine size	L*W*H= 4600 *3620 *1770 mm	Standard size
Machine weight	About 3T
Packing raw material	CPP film
Film Thickness	0.04mm-0.055mm
Max film diameter	400 mm	Over this size can be customized
Film core diameter	76mm	In accordance with international standards
Max film width	340mm	Over this size can be customized
Air pressure	Minimum air pressure 5MPA	Equipped by user
Power supply	380V/50HZ	Following China's electric power standard
Total drive power	4.8 KW	The sum of main motor, servo motor, Sum of speed regulating motor power
Total heating power	4.6 KW	Side seal, side sealing part of heating power combined
Voltage variation	+/-10%	In accordance with international standards
Packing format	Three-dimensional wrap	vertical sealing first and then two side sealing

About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
Our Workshop:
About the package and shipping:
Our Service:
Pre-Sale Services: We will reply your inquiy within 24 hours. According to your actual situation and budget, we will provide professional consultation and best solution with strong technical support.
After-Sale Service:
1.We will send the engineer or technician to your factory for installation, debugging and training the workers. Also welcome you come to our factory for learning the machine operation.
2.Warranty: One year guarantee, service for ever. Our technical team will give you 100% rest assured global presence service if necessary.
3.Wearing parts of machine will be sent to customers with a good preferential price.
Contact Us:
Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Fiona Hou

---
