Large Tractor Rear Mounted Quickly Pick up Picking up Stones

Product Description

Product Introduction:

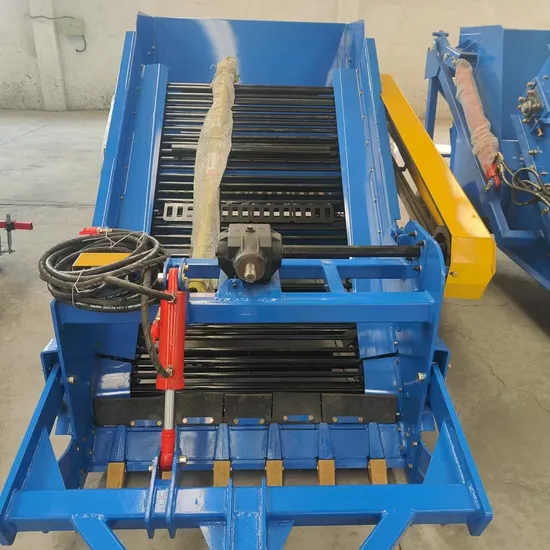

A large stone picker is an agricultural machinery specifically designed for picking up and removing stones from farmland. This type of machinery is crucial for preparing seeds and cultivating land, as stones can hinder crop growth, damage cultivation machinery, and potentially lead to soil structure deterioration.
Working principle:
The stone picking machine is usually towed by a tractor and powered by the tractor's PTO (power output shaft). Its working principle includes the following steps:
1. Picking: The picking device at the front end of the machine (such as star shaped rollers) separates the stones from the soil.
2. Conveyor: The separated stones are moved to the rear of the machine through a conveyor belt or similar conveyor system.
3. Collection: Stones are collected at the rear of the machine, usually in a hopper or collection box.
4. Unloading: When the collection box is full, the stones can be unloaded to the designated location.
Product parameters:

Large stone picking machine
Model	1.2m	1.5m
Excavation depth	35cm	35cm
Stone size	5-20cm	5-20cm
Work width	1.2m	1.5m
Auxiliary power	90-150hp	120-200hp
Weight	920kg	1100kg
Chain link diameter	20mm	20mm
Rear bucket capacity	0.6cu	0.2cu
Lifting height	1.6-1.8m	1.6-1.8m
Dimensions	4.2*1.85*1.5m	4.3*2.2*1.5m
Package dimensions	3.3*2.3*1.35m	3.3*2.3*1.35m

Product Tupian:

Product application direction:
Stone pickers are widely used in the agricultural field, especially in rocky farmland. They are used for:
1.Land preparation: Remove stones before sowing to protect tillage machinery.
2.Crop protection: prevent stones from causing damage to crop growth.
3.Soil protection: Avoid damage to soil structure caused by stones.
Packaging and transportation:
Company Profile:
Shandong Bodilan Machinery Co., Ltd. is a modern comprehensive company specializing in the research and development, production, and sales of agricultural machinery. It is one of the largest agricultural machinery production enterprises in the industry, specializing in farming, harvesting, and management.
The company's products are various agricultural machinery that are compatible with tractors ranging from 12-300 horsepower. The main products include plows, rotary tillers, disc plows, disc harrows, deep loosening machines, and other tillage machinery; Sowing machines for wheat, corn, soybeans, vegetables, and other crops; Potato and sweet potato planting and harvesting machines; Lawn mowers, rakers, balers and other grass machinery; Fertilizer spreader (truck) for granular fertilizer, organic fertilizer, etc; There are also sprayers, cultivators, ridgers, excavators, agricultural trailers, etc; And agricultural machinery accessories such as harrows, plows, loosening shovels, rake teeth, as well as engineering machinery accessories such as wood grabs, iron grabs, digging buckets, and extension arms. We can also produce according to customer drawings and samples, as well as design and produce according to customer requirements. Our company's products are sold year-round in various provinces and regions across the country, and are also exported to dozens of countries and regions such as Europe, America, Australia, Africa, Southeast Asia, and the Middle East. Our products are highly trusted by customers both domestically and internationally, and have received unanimous praise from them.
The company currently has modern processing equipment such as laser cutting machines, CNC machining centers, product welding and assembly lines, large-scale surface treatment and coating lines, greatly improving the company's equipment level and production research and development capabilities. Bodilan Machinery adheres to the mission of providing modern agricultural machinery and equipment products and enthusiastic services, and adopts a diversified procurement route for key components in foreign markets to provide customers with stable quality products. The company now has nearly a hundred long-term cooperative supplier partners, distributed in 25 provinces, cities, and autonomous regions in China.
Starting from the actual needs of the market and users, we continuously strive to promote the integration of agricultural machinery and agronomy for product innovation and research and development. We adhere to the development philosophy of "survival through quality, development through quality, and efficiency through quality", and uphold the corporate spirit of "honesty and trustworthiness, customer first, quality first". We insist on independent innovation to create core competitiveness and enhance the market competitiveness of our products in the agricultural machinery and equipment industry.
Shandong Bodilan Machinery Co., Ltd. relies on a strict quality management system, advanced production and manufacturing processes, reliable product quality, and after-sales service to provide high-quality products to customers from all walks of life. Welcome friends from all over the world to inquire, negotiate and inspect, cooperate for win-win, and create brilliance together!
Certification report:
Company advantages:
1. Rich product line: The company offers a wide range of agricultural machinery, including plows, rotary tillers, disc plows, disc harrows, deep loosening machines, and more; Sowing machines for wheat, corn, soybeans, vegetables, and other crops; Potato and sweet potato planting and harvesting machines; Lawn mowers, rakers, balers and other grass machinery; Fertilizer spreader (truck) for granular fertilizer, organic fertilizer, etc; And also sprayers, cultivators, ridgers, excavators, agricultural trailers, etc.
2. R&D and production capabilities: The company has modern processing equipment such as laser cutting machines, CNC machining centers, product welding and assembly lines, large-scale surface treatment and painting lines, which greatly improves the company's equipment level and production R&D capabilities.
3. International market: Our products are not only sold domestically, but also exported to dozens of countries and regions such as Europe, America, Australia, Africa, Southeast Asia, and the Middle East. They are highly trusted by domestic and foreign customers and have received unanimous praise from them.
4. Quality control: The company adheres to the mission of providing modern agricultural machinery and equipment products and enthusiastic services, and adopts a diversified procurement route for key components in foreign markets to provide customers with stable quality products.
5. Supply Chain Management: The company now has nearly a hundred long-term cooperative supplier partners, distributed in 25 provinces, cities, and autonomous regions in China, which provides strong guarantees for the stability and cost control of the company's supply chain.
6. Corporate philosophy: The company adheres to the corporate spirit of "honesty and trustworthiness, customer first, quality first", insists on independent innovation to create core competitiveness, and enhances the market competitiveness of enterprise products in the agricultural machinery and equipment industry.
After sales issues:
You can contact us if you have any after-sales problems
Frequently asked questions:
1.Are you a trading company or a manufacturer?
We are a professional manufacturer
2.What is your delivery time?
If it is regular goods and there is inventory, it usually takes 7-15 days. If there is no inventory or customized goods, it will take 30-60 days, depending on the quantity
3.Do you provide samples?
Small items can provide samples, while large items or customized items are not provided
4.What are your payment terms?
30% down payment, remaining balance to be paid before shipment
5.What is your minimum order quantity for 5?
All minimum order quantities vary by product, please contact me for details
6.How to install the 6 machines after they arrive?
After receiving the goods, we will send you an installation video for the specific product. You can install it according to the video
7.Can your products be customized?
Customization is possible if the conditions are met
8.How to ensure the quality of your product?
Professional team conducts quality inspection
9.What are the 10 trade terms?
Basically, it's FOB shipping. If you have any special needs, you can contact us to use other solutions

---
