US$4,000.00-6,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
LM1450A X6436 XL6436C XL6436CL XL8145
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description

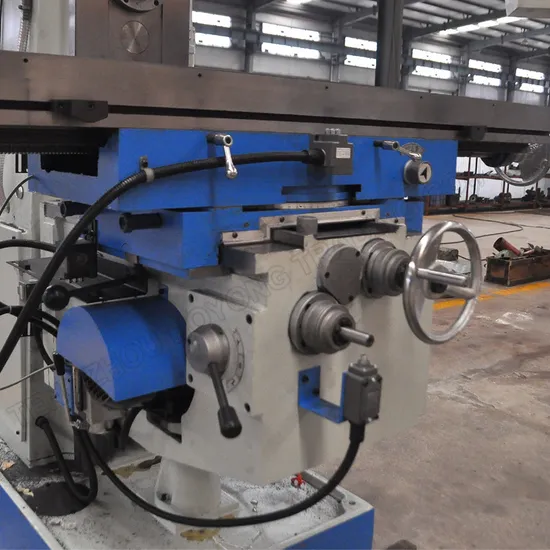

SWIVEL HEAD UNIVERSAL MILLING MACHINE FEATURES: 1.LM-1450A universal swivel head milling machine is based on theLM1450,
2. Installation of rotary table 45 degrees,
3. Processing of a wide range, three-axes automatic feeds,
4. Large torque and strong power, 1.5KW,
5. Fast-moving 2000mm/min.
6. Spindle taper is ISO 50
SPECIFICATIONS:
| MODEL | UNIT | LM1450A |
| Table size | mm | 1600x360 |
| T slot no./width/distance | no | 5/18/80 |
| Max. load of Table | kg | 400 |
| swivel angle of table | degree | ±45º |
| table Longitudinal travel(manual/auto) | mm | 900 |
| table Cross travel (manual/auto) | mm | 320 |
| table Vertical travel(manual/auto) | mm | 400 |
| Swivel angle of milling head | | 360º |
| Spindle taper | | ISO50 |
| spindle speed /step -- Vertical | rpm | 60-1800 |
| --Horizontal | rpm | 60-1700 |
| Distance from vertical spindle axis to column surface | mm | 160-800 |
| Distance from vertical spindle nose to table surface | mm | 200-600 |
| Distance from horizontal spindle axis to table surface | mm | 0-400 |
| Distance from horizontal spindle axis to ram bottom | mm | 200 |
| ram travel | mm | 600 |
| Longitudinal/cross feed | mm / min | 30~630(X,Y) |
| Vertical feed /step | mm/min | 30~630(Z) |
| Longitudinal/cross rapid speed | mm / min | 2000 (XY) |
| Rapid Traverse vertical | mm/min | 2000 (Z) |
| main motor | kw | 4 |
| (X/Y/Z) feed motor | kw | 1.5 |
| coolant motor | kw | 90W |
| overall dimension | cm | 207x202.5x220 |
| Machine weight | kg | 2650 |
>>
