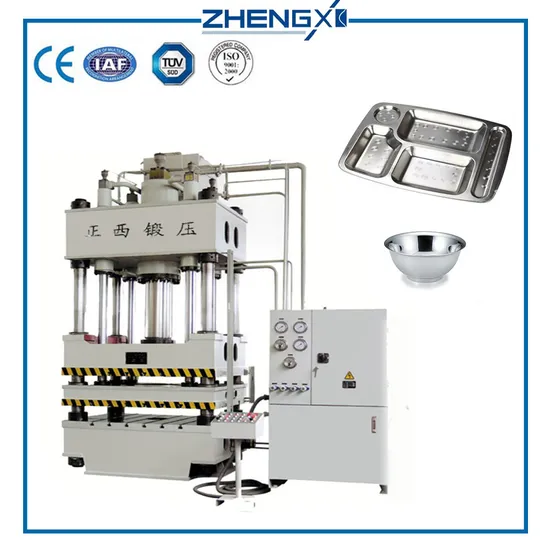

Hydraulic Press Machine for Sheet Metal Forming Oil Press 315 Ton

Product Description

Hydraulic press 4 column hydraulic Sheet metal deep drawing
Features
1.Hydraulic machine that used the hydrostatic pressure to process metal, plastic, rubber, wood, powder and other products .
2. It is commonly used in the pressing process and press forming process, such as: forging, stamping, cold extrusion, straightening, bending, flanging, sheet metal deep drawing, powder metallurgy, press-fit etc.
3.Significant technical and economic advantages in reducing weight, reducing the number of parts and the number of molds, improve the stiffness and strength, reduce production costs, etc.
Parameter

Model		unit	Yz24-50T	Yz24-80T	Yz24-100T	Yz24-150T	Yz24-160T	Yz24-200T	Yz24-250T	Yz24-350T
Nominal Force		KN	500	800	1000	1500	1600	2000	2500	3500
Ejection force		KN	250	400	500	600	750	1000	1000	2000
Return force		KN	25	50	80	55	100	120	140	200
Working pressure		MPA	20	20	20	20	20	20	20	20
Stroke		mm	460	400	540	550	550	550	600	600
Ejection stroke		mm	220	200	250	300	300	300	300	300
Slide speed	Down	mm/s	225	200	240	125	205	185	115	135
	Pressing	mm/s	15~25	15	18-28	23	23	18-28	18-28	18-28
	Return	mm/s	220	165	240	230	220	200	190	195
Table size	Left-right	mm	500	600	650	700	880	880	880	950
	Front-back	mm	560	700	750	800	990	990	990	1060
Motor power		KW	11	15	18.5	30	30	37	30	55

After-sale service
1.Personnel training
Free training for about one week.
2. After-sale service
One year warranty.During warranty period,free maintenance service can be provided.(except man-made faults or damages arising from irresistible natural factors)
3.Installation
Customers need to pay the commission to our proffessional engineer, and travel expense is on foreign customer.(Including round ticket and accommodation cost)
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as 1-16000Tons Hydraulic Press,SMC/BMC/GMT/DMC/LFT/GRP/FRP Press,Hydraulic Deep Drawing Press,Hydraulic Forging Press,Metalworking/Stamping Press.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Jiaomei City ,Fujian Province,China. You are warmly welcomed to visit us.
4: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5: How about your delivery time?
A: Generally 90 days. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.
6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
7: How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

---
