Product Details
Product Description
Product Description
VFFS-M4

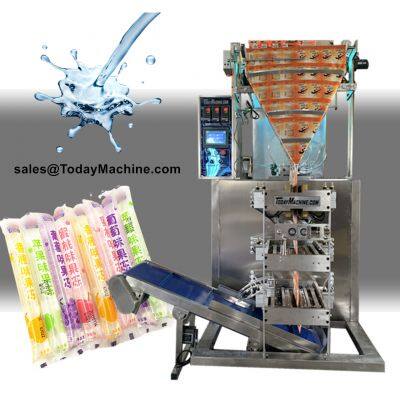

Multi Lane Packaging Machine
A multi-lane liquid form fill seal machine that operates by film roll is a packaging machine that is used to automatically form, fill, and seal pouches or sachets from a continuous film roll.
The film roll is unwound and formed into a tube shape, which is then filled with liquid product through a filling nozzle. The pouch is then sealed on both ends, creating a complete package. The machine can produce several pouches simultaneously, increasing production speed and efficiency.
multi lane sachet packaging machine
High-speed production: Multi-lane machines can form, fill, and seal several pouches simultaneously, increasing production speed and efficiency.
Accurate filling: These machines are designed to provide consistent and accurate filling of pouches to ensure product quality and safety.
Versatility: These machines are suitable for filling and sealing a wide range of liquid products, including beverages, dairy products, and chemical solutions.
Compact design: Multi-lane machines have a compact design that saves space on the production floor.
INDUSTRIES AND APPLICATIONS
1.Food and Beverage Industry: These machines are used for packaging liquid products such as sauces, ketchup, mayonnaise, salad dressings, juices, energy drinks, and water.
2.Pharmaceutical Industry: These machines are used for packaging liquid products such as syrups, cough medicines, and other liquid medicines.
3.Cosmetic Industry: These machines are used for packaging liquid products such as shampoos, conditioners, lotions, and gels.
4.Chemical Industry: These machines are used for packaging liquid products such as detergents, cleaning solutions, and chemicals used in industrial processes.
5.Personal Care Industry: These machines are used for packaging liquid products such as hand sanitizers, mouthwash, and other personal care products.
TECHNICAL SPECIFICATION
Model
| VFFS-M2
| VFFS-M3
| VFFS-M4
| VFFS-M5
| VFFS-M6
|
Lane
| 2
| 3
| 4
| 5
| 6
|
Max film width
(mm)
| 320
420
500
600
| 320
420
500
600
| 320
420
500
600
| 320
420
500
600
| 320
420
500
600
|
Bag type
| 4 side seal
| 4 side seal
| 4 side seal
| 4 side seal
| 4 side seal
|
Bag size
(mm)
| L: 30-150/250
| L: 30-150/250
| L: 30-150/250
| L: 30-150/250
| L: 30-150/250
|
Range
| 1-10ml
10-100ml
100-200ml
| 1-10ml
10-100ml
100-200ml
| 1-10ml
10-100ml
100-200ml
| 1-10ml
10-100ml
100-200ml
| 1-10ml
10-100ml
100-200ml
|
Speed
| 60-90
bag/min
| 90-130
bag/min
| 120-180
bag/min
| 150-220
bag/min
| 180-270
bag/min
|
Power
| 2kw
| 2.5kw
| 3kw
| 3kw
| 3kw
|
Power supply
| 220V 50Hz/
110V 60Hz
| 220V 50Hz/
110V 60Hz
| 220V 50Hz/
110V 60Hz
| 220V 50Hz/
110V 60Hz
| 220V 50Hz/
110V 60Hz
|
Dimension
| 990x1150x1800mm
| 990x1150x1800mm
| 990x1250x1800mm
| 990x1250x1800mm
| 990x1250x1800mm
|
Weight
| 350kg
| 400kg
| 420kg
| 420kg
| 450kg
|
>>
