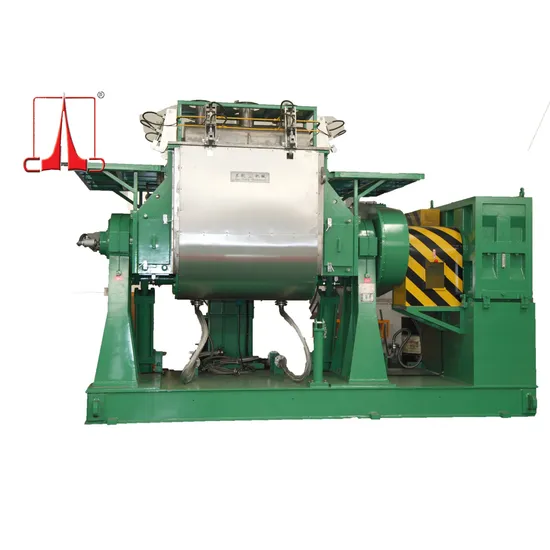

Good Quality Nh-3000 Sigma Blade Kneader Mixer with Hydraulic Pump

Product Description

Quick Details
Condition: New
Type: Rubber Kneader
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Lanhang
Model Number: NH-3000
Voltage: 380V
Power(W): 220000
Dimension(L*W*H): 3400x2200x1800 mm
Weight: 15 T
Certification: CE, SGS, lAF, CNAS
Warranty: 1 year
After-sales Service Provided: Overseas service center available
Rubber Machine Name: Plastic Kneader
Rubber Kneader Color: Green / Blue / etc. (customize available)
Plastic Kneader Material: Stainless Steel / Carbon Steel / Casting Steel
Motor for the Plastic Kneader: Frequency Control
Packaging & Delivery
Packaging Details:Delivery Detail:

Wood Pallet & Film Wrap (Plastic Kneader)

60 Working Days Since Down Payment (Plastic Kneader)

Specifications
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Vacuum Kneading
4. High capacity & high efficiency
Why Choose Kneader Products from Lanhang
1. We're founded in 1992, with more than 25 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management
Main Parameters of Our Kneader

Model	NH-5000	NH-3000	NH-2000	NH-1500	NH-500
Capacity (L)	5000	3000	2000	1500	500
Filling Coefficient	0.6
Agitator Blade	Sigma Z Blade Rotor
Rotating Speed	N1 35r/min N2 21r/min			N1 40r/min N2 21r/min
Jacket Pressure (Mpa)	≤ 0.3
Chamber Pressure (Mpa)	≤ -0.094
Cooling Type	Water Cooling
Heating Methods	Jacket Steam / Oil / Electricity Heating
Discharging Types	Hydraulic Tilting / Drop Door / Screw Extruding
Unique Function	Vacuum and Nitrogen-filled Kneading Available
Power Supply	AC 380V 50HZ 3P (customized available)
Motor Power (Kw)	300	220	160	132	90
Overall Dimension (mm)	3400x2400x1900	3400x2200x1800	3280x2100x1700	3200x2000x1650	3000x1980x1600
Weight (T)	25	15	11	9	6

Application of Lanhang Brand Kneader
The field of application comprises of the rubber, plastics, paint, adhesives, pharmaceutical, cosmetics and foods industry as well as the general chemicals industry. Depending on the application, the mixed compound is discharged by tilting the mixing chamber, by a discharge screw or via bottom discharge valves for transfering to the next step of process.

Function of Lanhang Machinery Kneader
The kneader is special used for mixing and kneading high-viscosity material. It has a excellent effect for mixing, kneading, crushing and dispersing because of the intense force produced by two powerful rotary agitator blades.
Packaging & Shipping
Wood Pallet & Film Wrap ( Plastic Kneader )

Our Services
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support

---
