Agricultural Power Harrow Factory High Quality Driven Rakes Machine Vertical Blade Rotary Tiller Gearbox

US$200.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.

KLF-DX300

Application Field

Agriculture, Livestock, Aquaculture, Forestry

Farming Policy

Dry Cultivating Machinery

Power Source

Tractor

Operation

Soil Preparation Machinery, Continuous Running Operation

Traction Type

Traction

Drive Type

Gear Drive

Arbor Configuration

Horizontal Axis

Certification

ISO

Color

Red

Warranty

OEM

Available

Ratio

2.47:1/2.63:1

Input

200HP

Input r.p.m

1000

Output r.p.m

405/380

Input N.M

1404

Output N.M

3500/3700

147

Transport Package

Crate

Specification

Cast iron

Trademark

KADIVA

Origin

Zhejiang China

HS Code

8483409090

Production Capacity

50000PCS/Month

Product Description

Agricultural Power Harrow Factory High Quality Driven Rakes Machine Vertical Blade Rotary Tiller Gearbox Product Description

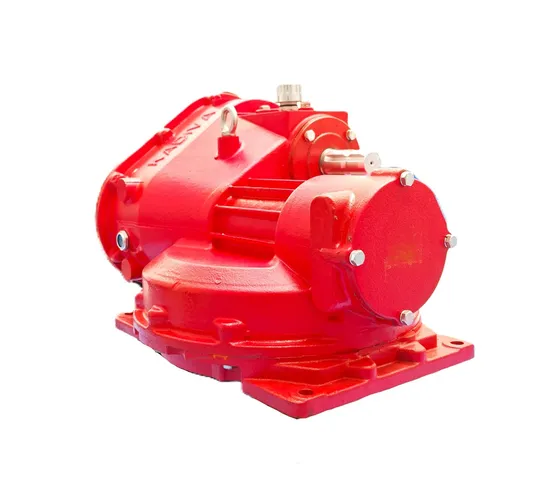

KLF-DX300 vertical blade rotation Power driven rake Gearbox
This product is used in the power-driven rake main transmission gearbox. It is derived from European and American design concepts. The main transmission box drives the transfer case gear and rotates the rake blade for operation. Power-driven rake uses vertical blade rotation to effectively protect the soil from nutrient loss. The design range of KLF-DX300 is 3.5 meters to 4.5 meters. It adopts a manual shifting method and is suitable for tractors with different speeds. This design can switch between 4-6 output speeds and has a wider range. Product Parameters
Detailed Photos
Click here for more products
Company Profile
Please contact us if you need more information
