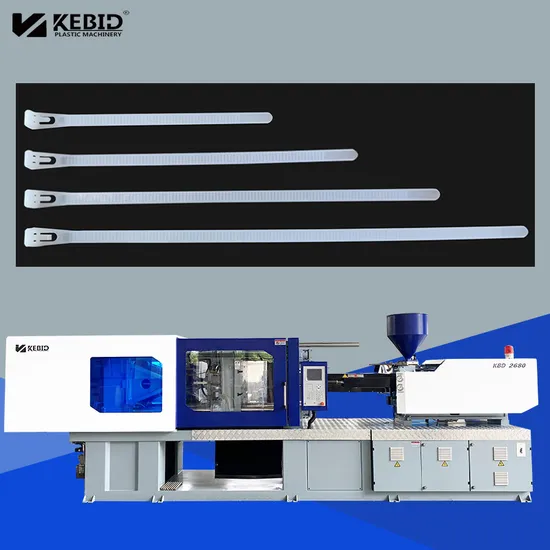

High Quality Low Noise Servo Tie Injection Molding Machine

Product Description

Company Profile
Ningbo HYSTAN(KEBIDA) Plastic Machinery Manufacturing Co. Itd., located in Chinese eastern seaside city of Ningbo, is a professional high-new technology injection machine manufacturing enterprise. The company, through continuous reform, innovation, carrying on scientific optimization management, sticking to purpose quality first, sincerity first, client first, now has a skilled professional technical team. The Independently developed HYT Series and KBD Series always pass strict test in processing of design, material purchasing, fittings assemblies and output of the machine. And the machine passes the test of International Testing Center. The main parameters, safety characteristics, hydraulic system and electronic system achieve top level in the industry. HYT Series and KBD Series injection machine have characteristics: beautiful figure and appearance, strong clamping force, high precision, low noise, energy saving and low power consumption. The company has dozens of sales network and service department in China. The machine also has been sold to Russia, Southeast Asia, Middle East, South America, Europe, and other Countries and areas, earning good reputation from clients in domestic and foreign market. The company sticks to manage concept People Oriented, Client Supreme, pursues first-class high quality output, and is willing to accompany New and Old Client, Colleague to create splendid future!
Our Advantages
High quality international accessories
Responds quickly and stably It adopts international famous brand controller, fully enclosed electrical control box, and reasonable electrical components.
TFT LCD color display. A high-performance controller specially for injection molding machine . High-precision displacement sensor as soon as possible. Energy-saving drives and servo motors. Online update program, data export, easy operation and multi-language support are available using USB. More than 10 languages. Hydraulic Unit
Fast response and stable output
The hydraulic system adopts imported famous brand hydraulic components, and adopts the oil circuit combining the plug-in and the slide valve to effectively improve the response speed of the system.
High-efficient and energy-saving servo control system.
Responsive to fast and stable hydraulic control components.
Precision and stable hydraulic power unit.

Accurate Injection and Stable operation Injection, pressure holding pressure closed-loop control, back pressure precision control The barrel screw has a long life and is easy to replace Personalized design, including nozzle shied and central lubrication,it reduced operation intensity and that's convenient for daily maintenance while guaranteeing safety

Product Parameters

SPECIFICATION		KBD2680
ITEM		A	B	C
INJECTION UNIT
SCREW DIAMETER	mm	55	60	65
SHOT VOLUME(THEORETICAL)	cm³	598	712	836
INJECTION WEIGHT(PS)	g	538	641	752
INJECTION PRESSURE	Mpa	200	168	143
SCREW SPEED	rpm	0-190
CLAMPING UNIT
CLAMPING FORCE	KN	2680
TOGGLE STROKE	mm	550
SPACE BETWEEN TIE BARS	mm	580*580
MAX.MOLD HEIGHT	mm	580
MIN.MOLD HEIGHT	mm	230
EJECTOR STROKE	mm	140
EJECTOR TONNAGE	KN	62
OTHERS
PUMP MOTER POWER	Kw	29
HEATING POWER	Kw	20.2
MACHINE DIMENSION(L*W*H)	m	6*1.62*2.25
MACHINE WEIGHT	T	8.5

Detailed Photos
Certifications
Exchange exhibition
FAQ
Q:How to choose injection molding machine?
A:The injection weight should be about 1.2× product's weight; The tie bar space should be bigger than the mold dimension; Contact with us for more information.

Q:How to pay?
A:40% deposit T/T in advance, the balance 60% payment by T/T before delivery (we accept payment by T/T, L/C etc.)

Q:Is that possible for your company to send engineer to install machine for commissioning, even train our workers?
A:Yes, we can send our engineer to your factory for installing, commissioning, training. We have some engineers flying among different countries for after sale service and technical support. As per experience, if everything OK usually 5-15 days is enough. Therefore, before shipment, we need you to prepare invitation letter for visa. However, please be noted that all cost happened for visa, travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visa is successful.

Q:If we buy your machines, is there any warranty?
A:Yes, definitely. Totally 24-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 24-months. We will supply those parts in freeway but the possible transportation cost should be paid by clients.

Q:What is different with A,B,C screw, What is the price different?
A:The screw model is designed for different material and requirements, the screw diameter Changes from small, middle and big. There is no price difference in the price for choosing A/B/C screw types.

Q:How to choose the screw ?
A:For PC,Pa(Nylon)and other high viscosity material ,it's better to choose A screw .
For PP,PE,PS materials, better to choose B Screw .
For Recycled material , better to choose C screw .

Q:What's the delivery preriod after place the order?
A:Normally the delivery date will be in one month after receiving the down payment .

---
