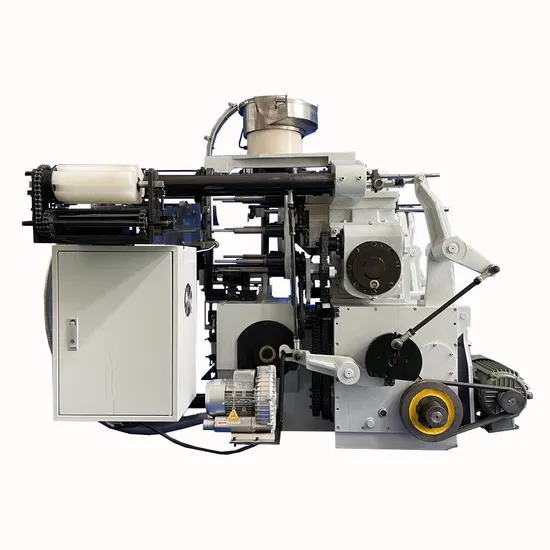

Automatic Capping Machine in Aluminum Tube Making Line

Product Description

Product Application NM01 is the capping machine for printed and dried aluminum tubes. Tubes are sent to capping machine where capping manipulator spin cap over the nozzle.
Tubes move into the tube slot and are inserted over mandrel by push rod. The detector switch detects the aluminum tubes on the mandrel prior to the capping station, and if tube is present, the jaw opens, plastic cap drops into the jaw and the jaw closes to hold the cap. At the same time, the jaw with the cap moves towards mandrel while mandrel rotates in the opposite direction, and the cap is screwed on tubes nozzle. The unloading plate pushes tubes into the blow tank.

SPECIFICATIONS FOR Capping Machine
A. Tube range		φ11mm-φ38mm
B. Tube length		≤210mm
C. Production speed		≤60 tubes/min
D. Motor power		2.2KW
E. Dimensions		2074*1210*1525mm
F. Weight		about 1800KG

Main Features A. Caps are dropped fast, steadily and automatically.
B. Tightness are uniform and can be regulated.
C. Automatic detection. No tubes, no capping.
D. SIEMENS PLC controls speed and frequency.
Q: What's the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.

---
