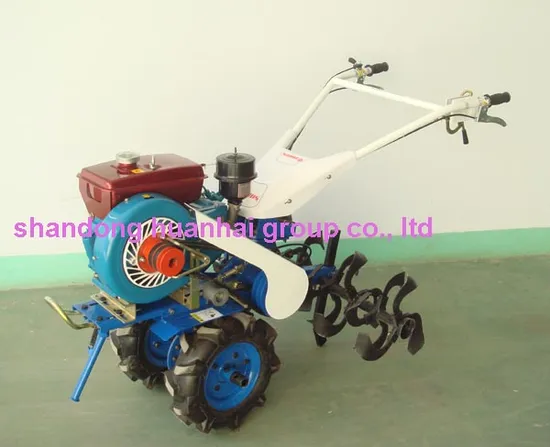

Sh41 Sh61 Agricultural Hand Tiller

Product Description

Powered by R170 diesel engines, it's simple and compact in construction, and light in paddy fields, Ideal for paddy fields, and has the advantage of reliability, long service life, easy and nimble to operate, as well as adaptable.
With corresponding implements, the tractor can go on plowing, harrowing, ridging, seeding, fertilizing, harvesting and so on, and it can also transport equipped with a trailer of 0.75 ton, or as fixing power, can be used for threshing, grinding, milling and pumping.

Tiller	Type	1WG-4 (with 170 diesel engine)
	Overall dimension (mm)	1600*590*830
	Tiller width (cm)	45-90
	Tiller depth (cm)	5-25
	Rotary blade	24
	Tire	400-7 ( type pattern )
	Shifting	2+2
Engine	Model	170F
	Bore×Stroke (mm)	70*70
	Displacement (ml)	0.269
	Max power (kw/rpm)	3.23 ( 4HP )
	Type	single cylinder, air cooling, horizontal
	Start mode	Recoil
Packing	Overall dimension (mm)	1120*450*770
	N,W / G.W(kg)	115/125
	40HQ (set) Loading quantity	150/210-6

---
