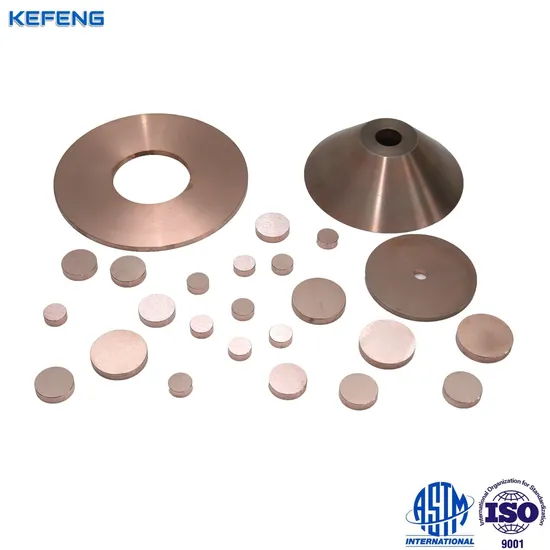

Copper Tungsten Alloy, W-Cu Alloy Discs Rod and Plate, Copper

US$1.00-200.00 1 Piece (MOQ)

Basic Info.

Model NO.
Dia125mm x OD50MM X 10MM
Purity
75%W-25%Cu
Alloy
Alloy
Shape
Different Shapes
Type
Tungsten Bars
Copper
Tungsten
W
Cu
75%W
25%Cu Alloy
70%W-30%Cu Alloy
for Electrode
EDM Cutting
W-Cu Alloy for EDM Cut
Transport Package
Export Wookend Boxes
Specification
Dia3-Dia100mm x 2mm-330mm
Trademark
Kefeng
Origin
China
HS Code
8101999000
Production Capacity
3000PCS Per Month

Product Description

Tungsten copper, we usually call it tungsten-copper alloy or W-Cu alloy, it is a composite material and has unique properties,it has two elements, tungsten and copper. Tungsten has high melting point and high density, superior thermal conductivity. Copper is a good material with excellent conductivity and thermal conductivity. They are alloyed together with highly characteristies in various industries.
High thermal conductivity: Applications requiring effective heat dissipation.
High density: Useful in applications where weight is a critical factor, such as in aerospace components and sporting equipment.
Electrical conductivity: Tungsten copper alloy has good electrical conductivity, suitable for electrical applications like contactors and switches.
High temperature resistance: Applications in the aerospace and defense industries.
Erosion resistance: Tungsten copper alloy exhibits excellent resistance to cavitation and erosion, use in liquid-handling systems and hydraulic applications.
We produce it as per ASTM B702 standard, Copper-Tungsten Electrical Contact Material.
Material: 68-90%W-Cu balacne
Density: 12.7-15.5g/cm3. (note: different Cu % with different density) According to ASTM B 702 standard
Hardness: 77-106 HRB (Different Cu% with different hardness) According to ASTM B 702 Standard
Electrical conductivity % IACS 38-57% According to ASTM B 702.
