2014 Hot Sell Paper Cup Forming Machine (JBZ-OCS09)

Product Description

Paper Cup Maker Making Forming Machine Price JBZ Product Description

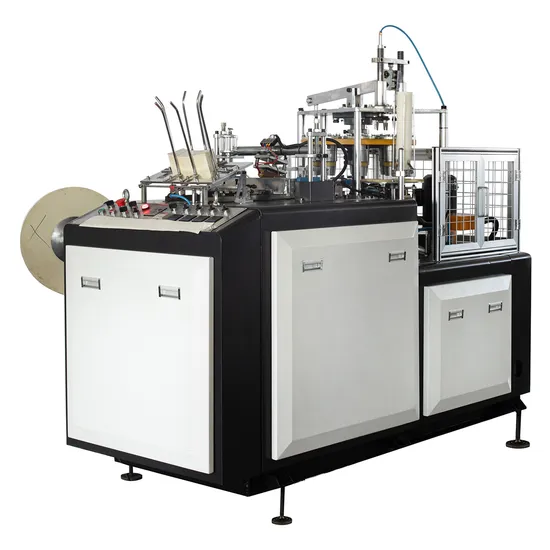

JBZ-OCS9 Paper Cup Making Machine is a multi station high-speed automatic machine which producing both single and double PE coated drink cups/glasses,ice cream cups/glasses through continuous process of automatic paper feeding,sealing,oil injection,bottom cutting,heating,knurling,curling and stacking.The machine adopt hot air system,full-automatic failure warning,counting,detection,stopping,etc.
Product Parameters

Model	JBZ-OCS09 Paper Cup Making Machine
Cup Side Welding:	Heat Sealing/Ultrasonic heater
Paper Cup Size	3 ~9OZ (30ml~270ml Mould exchangeable) Max Cup height to 115 MM

Raw Material	One or Two side PE coated Paper (Popular for Hot and Cold drink Cups)
Suitable Paper Weight	140-350gsm
Speed	65-75 pcs/min
Total Power	6 KW
Power Source	50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement.
N.W	1400Kg
Gross Weight	1500Kg
Machine Size(L * W * H)	2000*1000*1600mm
Package Size(L * W * H)	2100*1050*1700mm
Working Air Source:	Air pressure:0.4Mpa; Air Out-put:0.6m³/minute Need to buy Air Compressor(by user)
Cup Bottom Heating:	1side PE paper by heater knurling; 2side PE paper by hot air system cool device (circle water) knurling
Cup Bottom Knurling:	Heater Knurling (if use single PE coated paper)
Packing	Seaworthy Wooden Case
