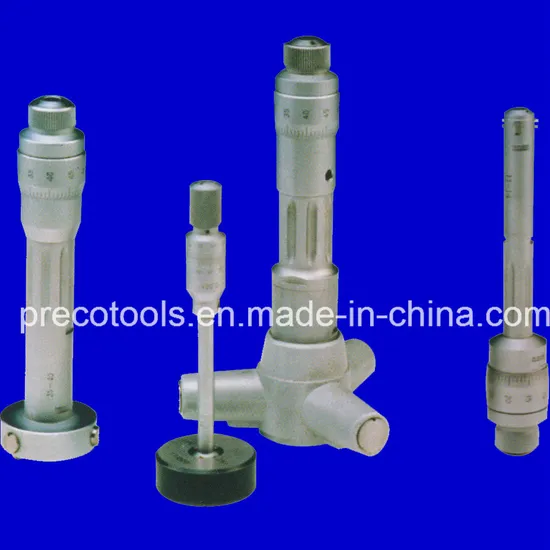

High Precision 3-Point Internal Bore Micrometers

Product Description

Supply Precision Three Point Internal Inside Micrometer.
Features: High Precision Measurement: It offers high accuracy, with a precision of up to ±2μm (less than 2μm) for certain models. This level of precision is crucial for applications requiring tight tolerances. Three-Point Contact Design: The three measuring anvils are evenly distributed at 120° intervals, ensuring that they closely fit the inner wall of the hole to accurately determine the exact position of the hole axis, thus achieving precise internal diameter measurements. Titanium Coated Measuring Pins: For models with a measuring range greater than 12mm, the titanium-coated measuring pins provide excellent durability and impact resistance, allowing for measurements at the bottom of blind holes. Constant Measuring Force: The ratchet locking device ensures a constant measuring force, which is essential for maintaining consistent and reliable measurements. Calibration Standards: The optional calibration rings can be used for zero-point setting, ensuring the accuracy of the measurements. Wide Measuring Range: The three-point internal micrometer is available in a variety of measuring ranges, from 2 - 2.5mm up to 275 - 300mm, making it suitable for a wide range of applications. User-Friendly Design: The micrometer is designed with user-friendliness in mind, featuring a clear and easy-to-read scale or digital display, and an ergonomic handle for comfortable use. These features make the three-point internal micrometer an indispensable tool for professionals who require accurate and reliable internal diameter measurements in various industries.
Sets are also available.
A. Single or set
B. Three points self-centering heads
C. Rachet stop
D. Both inch and metric sizes
E. Complying with standard DIN863
F. Graduation of metric: 0.005mm
Graduation of Inch: 0.0002"
G. Packed in aluminium carrying cases.
For more details of our products, please kindly visit our website to browse and download our cataolg.
You can also directly contact us through email, fax and phone to get further assistance.

---
