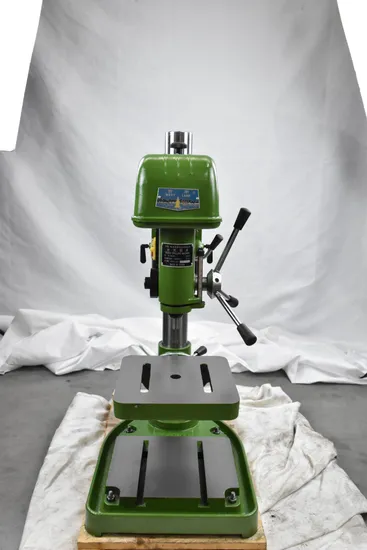

Industrial Drilling Tool with ISO 13mm (Z512-2)

Product Description

COMPANY PROFILE
Hangzhou West Lake Drilling Machine Co ., Ltd . is the largest manufacturer of drilling presses , milling / drilling machines and tapping machines in China , which was established fifty years ago and has been always on the top of quality , production and varieties in the field of bench drills in China .
With brand " Westlake ", our products have been served for international market since 1956. You may find them widely used in different fields around the country and more than 60 countries / areas worldwide at present . Westlake is one of the most famous trademark among China machine and electric products for exportation , enjoying a high reputation by all customers both domestically and overseas .
Equipped with a R & D center , Metrology and test center , we have advanced product and test equipment such as CNC , Composite Machine Tool , Coordinate Measuring Machine and laser interferometer etc . Our company is experienced and strong in product design and manufacture , in constant pursue of advanced technology and continuous development of CNC . Currently we are supplying three series of Westlake drilling machines , Westlake Precision Machine and Westlake compact - sized CNC with more than one hundred types of products .
we obtained ISO9002QA and ISO9001:2000 certification as early as 1996 and 2002 respectively . Our products have obtained Germany GS and Europe CE certification as well .
Product Description
Main Feature:
1.13mm industrial type bench drilling machine .
2.Belt driving ,low noise.
3.The belt will skid when the machine is over load.
4.High precisionmhigh rigidity.
5.High precision chuck.
6.Widely use in various kinds of artifactitious area.
Technical Data:

Max.drilling capacity	12.7mm
Diameter of column	70mm
Spindle travel	100mm
Distance spindle axis to column surface	193mm
Max. distance spindle nose to worktable	326/318(MT.2:362)mm
Max. distance spindle nose to base	556/548(MT.2:592)mm
Spindle taper	B16/B18 or MT.2
Spindle speeds range	480-4100rpm
Spindle speeds	5
Diamension of worktable surface	265×265mm
Diamension of base worktable surface	250×300mm
Overall height	1037mm
Motor	370w/550w
G.W./N.W.	109/86 kgs
Ship measurement	79×44×96cm

The Pictures of Machine Parts:
FAQ:
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.

2. Question : Why choose cooperate with us ?
Answer :
--Reliable Quality and All components from world leading suppliers ;
--Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Hangzhou city, Zhejiang Province, China . It takes about 1 hours from Shanghai by high speed train. Warmly welcome clients to visit us .
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How does your factory do regarding quality control ?
Answer: Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
Welcome to visit our company website (http://wl-mach.en.made-in-china.com/)to send enquiry to us so you would get the best factory direct price,it is only for you !

---
