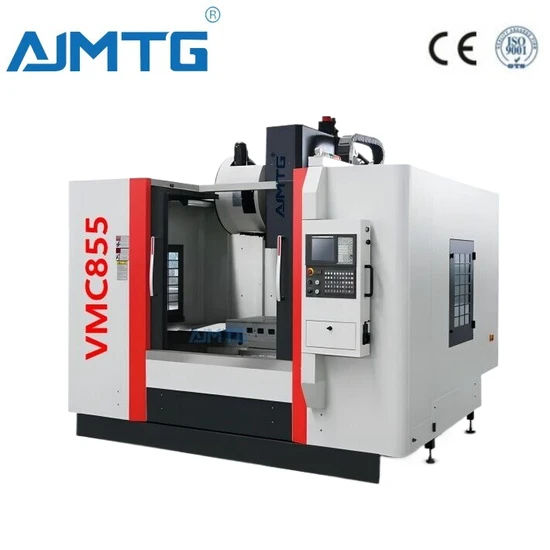

Best 3 Axis Metal Cutting CNC Milling Machine

Product Description

Nantong AJ Industry Limited offers the VMC855(H), VMC1060(H), VMC1160 3/4/5axis Horizontal Metal Cutting Mini Vertical Drilling CNC Milling Machine. Explore our range of CNC machining centers for precision metal cutting.
Best 3 Axis Metal Cutting CNC Milling Machine
Explore our top-of-the-line CNC milling machine for precision metal cutting. Ideal for industrial use, this machine offers high-speed performance and advanced features. Get yours today from Nantong AJ Industry Limited!

Machining range	X axis travel	800mm
	Y axis travel	500mm
	Z axis travel	500mm
	Spindle nose to worktable	150-650mm
	Spindle to column guide	550mm
Worktable	Worktable size	1000x500mm
	T slot	18X5X90mm
	Weight load	500kgs
Spindle specification	Spindle	8000rpm belt drive Japan make
	Spindle motor	7.5kw
	Spindle taper	BT40(Ø140)
Feed system	G00 fast feed	48/48/36m/min
	G01 cutting feed	1-10000mm/min
	Servo motor	2*2*3kw
Tool system	Capacity	24 tools arm type Taiwan make
Main parts		Make
Ball screw		Taiwan C3 grade diameter 40mm, pitch 12/16mm
Linear guide		Taiwan HIWIN or Germany 35mm pin roller type
Spindle		Taiwan diameter 140mm , 8000 rpm
Tool magazine		Taiwan BT40-24 tools arm type
Bearing for 3 axis		Germany or Japan Nachi, Screw Angle Support Bearing 30X62

Export Certificate
Company Name: Nantong AJ Industry Limited
Product Name: Best 3 Axis Metal Cutting CNC Milling Machine
Keywords: Metal Cutting CNC Milling, Vertical Machining Center, 3 Axis VMC CNC Milling, CNC Metal Cutting Machine, Machine Tool Equipment, CNC Milling Machine Parts, Top CNC Machine Supplier

---
