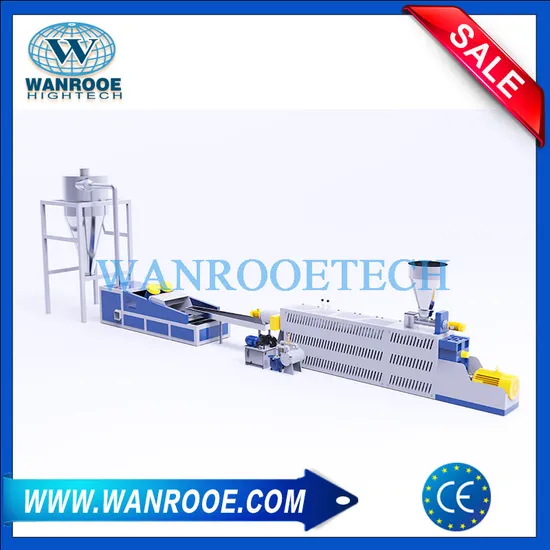

Single Stage Recycled Material Plastic Granule Production Line

Product Description

Single Stage Recycled Material Plastic Granule Production Line
Applications:
The single-stage regrind pelletizing production line is ideal equipment for plastic granulator, especially for PP, PE film scrap, HDPE, PP,BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags solid recovery of the broken material recycling and pelletizing. The production line has a novel design, reasonable structure, stable operation, low noise, low power consumption, and high-yield advantage.
Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→Degassing single screw extruder →Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.
Detailed description of each items:
1. Screw Feeder : convey Plastic scraps into the main machine.
2.Force feeder: feed the material to the extruder with a designed speed, the speed can be adjusted.
3.Extruding system: plasticizing material and exhausting gas.
4.High-speed Net exchanging system and Die-head: filter material impurity, to make production more stable.
5.Water ring pelletizing machine: cutting pellets in water.
6.Water tank: cooling pellets.
7. Dewater machine: make pellets dry.
8.Vibration sieve: remove bad pellet and keep good pellet.
9. Air Blower: convey good pellets into silo.
10.Storage silo: keep pellet.
Equipment Lists:
1.Screw Feeder(optional)
2.Force feeder
3.Single screw Extruder.
4.Die head and screen changing device.
5.Water ring cutter.
6.Vibrating screen.
7.Vertical dewatering machine.
8.Air drying system.
9.Cyclone hopper.
Features:
1. Allow free assembling of the screw component, based on raw material type.
2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting, and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. The main screw has vacuum exhaustion.
5.Water ring granulator machine, attached with dryer. 6. Single screw extruder, with specially designed screw, barrel, venting system, ensures the good quality of the final products.
6.Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.
Technical Parameters

No.	Equipment List
1	Belt conveyer
2	Crushing barrel
3	Extruder
4	Die head and screen changing device
5	Water ring cutter
6	Vibrating screen
7	Vertical dewatering machine
8	Air drying system
9	Cyclone hopper

Main Specifications:

Model	Extruder	Screw diam.(mm)	L/D Ratio	Power(kw)	Capacity (PE) (kg/h)	Capacity (PP) (kg/h)
PNHS-100	SJ100/33	100	33:1	210	280-350	250-300
PNHS-130	SJ130/33	130	33:1	300	480-550	400-480
PNHS-160	SJ160/33	160	33:1	370	650-750	550-650
PNHS-180	SJ180/33	180	33:1	460	800-1000	750-850

Our Service 1. One year guarantee for whole machine.
2.24 hours technical support.
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.

---
