| US$9,999.00-25,000.00 | 1 Set (MOQ) |

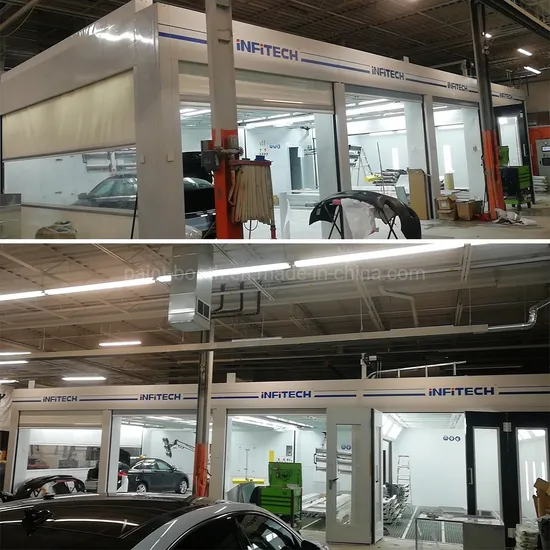

| Garage Equipments/Auto Spray Booth/Paint Cabin | |
| ITEMS | SPECIFICATIONS |
| Design standard | BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009 |
| Internal dimensions | 6900 X 4000 X 2800mm (L X W X H) |
| External dimensions | 8470 X 4110 X 3460mm(L X W X H) |
| Plenum | 600mm high |
| Basement | Pit for extraction |
| Entrance door | 1 set, 3400X2700mm (W X H) |
| Divider door (Electric plate roll-up door) | 1 set, 6000X2400mm (W X H) |
| Walls | 50mm thick rock wool panels |
| Ceiling lighting (LED) | 8 sets, each 6 X 18W, 864W total |
| Side lighting (LED) | 4 sets, each 2 X 18W, 144W total |
| Brightness | >1,000LUX |
| Filters | Pre-filter, high efficiency filter, floor-level filter, exhaust filter |
| Air intake | Direct-type turbine fan, 7.5KW SIEMENS motor |
| Air exhaust | Direct-type turbine fan, 7.5KW SIEMENS motor |
| Air volume | 28,000m3/h |
| Empty loaded air speed | +/-0.28m/s |
| Air exchange times | 6 times/min |
| Maximum working temperature | 80ºC |
| Heat exchanger power | 232KW |
| Burner | RIELLO diesel burner RG5D (two stage) |
| Heat recovery system | Yes. |
| Controls | CE standard control box, with inverter control |
| Rated power | 20KW |
| CE Certified Preparation Bay | |
| ITEMS | SPECIFICATIONS |
| Design standard | BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009 |
| Internal dimensions | 6900 X 3400 X 2800mm (L X W X H) |
| External dimensions | 8100 X 3560 X 3460mm(L X W X H) |
| Plenum | 600mm high |
| Extraction A Extraction B | A: Pit for extraction B: Through exhaust plenum chambers at the back |
| Entrance door | 1 set, 3200X2600mm (W X H) |
| Divider door (Electric plate roll-up door) | 1 set, 6000X2400mm (W X H) |
| Walls | 50mm thick rock wool panels |
| Ceiling lighting (LED) | 8 sets, each 4 X 18W, 576W total |
| Brightness | >800LUX |
| Filters | Pre-filter, high efficiency filter, floor-level filter, exhaust filter |
| Air intake | Direct-type turbine fan, 5.5KW SIEMENS motor |
| Air exhaust | Direct-type turbine fan, 5.5KW SIEMENS motor |
| Air volume | 18,000m3/h |
| Empty loaded air speed | +/-0.21m/s |
| Air exchange times | 4 times/min |
| Heat | Overhead infrared heating system |
| Controls | CE standard control box, with inverter control |
| Rated power | 20KW |
