Automated CNC Machine Center for High-Quality Machining Systems

Product Description

Introducing our Competitive Price CNC Machining Center Partslathe Milling Machine, designed to elevate your machining capabilities with exceptional precision and efficiency.
Product Description
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

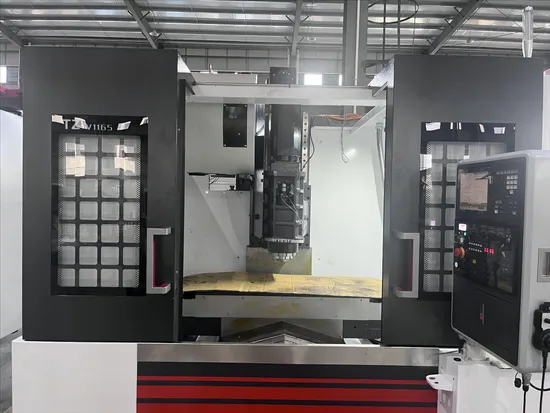

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• Experience optimal processing conditions within an unmatched production environment, setting new standards in machining efficiency and quality.
Our lineup of imported horizontal and vertical machining centers, CNC boring machines with innovative rotating tables, and gantry guideway grinding machines deliver superior workpiece accuracy. These advanced systems significantly enhance assembly precision and prolong the life of operational accuracy, ensuring your production line remains at the cutting edge.
• Cutting-Edge Detection Methods
Positioning accuracy undergoes meticulous testing and fine-tuning using state-of-the-art laser technology. This process is in strict compliance with the German VDI3411 inspection specifications, involving a comprehensive series of 5 tests each to guarantee precision.
Every machine tool is subjected to rigorous processing tests before leaving the factory, ensuring they meet, and often exceed, the actual processing accuracy demands, thereby delivering unparalleled performance.
Product sample
• This versatile CNC machine center offers seamless integration of milling, drilling, and tapping functionalities, empowering your operations with multifunctional capabilities.
• Expertly engineered to handle CNC machining of various metal profiles, including aluminum, steel, copper, and also accommodating non-metal materials with ease.
• Exceptionally suited for use across diverse industries, including 3C electronics, rail transportation, aerospace, and the manufacturing of linear module guide rails, expanding your market potential.
Packaging & Shipping
•Highly Protective
•Structural Stability
•Environmentally Friendly and Recyclable
Professional Team
FAQ
1. What are the Payment Terms?
A: T/T, 40% initial payment when ordering, 60% balance payment before shipment.
2. What are your trade terms?
A: FOB, CFR, and CIF are all acceptable.
3. When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may take longer. Place your order based on the delivery timeline we provide.
4. What is your minimum order quantity and warranty?
A: Our MOQ is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: The machines are securely packed in standard wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us your product drawings, and we will choose the most suitable machines for you.

---
