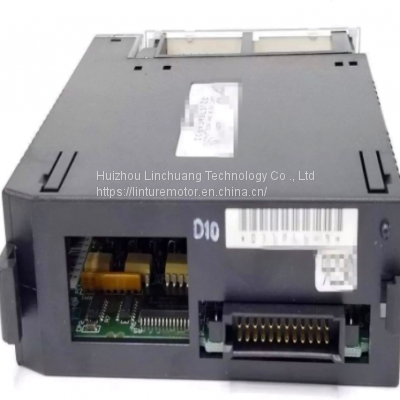

| GE | Model:IC200ALG620 | |
| USA | DC:24V | |
| ABS | Type:Drive IC | |
| CE | ||
| ewing machine servo motor,ac servo motor | ||
| IC200ALG620 | IC200ALG630 | |
| Product Name | VersaMax Analog Input Module, 16 Bit RTD, 4 Channel | VersaMax Analog Input Module, 16 Bit Thermocouple, 7 Channel |
| Lifecycle Status | Active | Active |
| Input Range | RTD types: 25, 100, and 1000 ohm platinum 10, 50, and 100 ohm copper 100 and 120 ohm nickel 604 ohms nickel/iron | Thermocouple types: J, K, T, S, R, none (used for mV inputs) |
| Number of Channels | 4 | 7 |
| Resolution | 15 bits plus sign | 15 bits plus sign |
| Update Rate | 60 Hz: approximately 210 milliseconds per channel 50 Hz: approximately 230 milliseconds per channel | 60 Hz: approximately 60 milliseconds per channel 50 Hz: approximately 70 milliseconds per channel |
| Accuracy at 25°C | on voltage measurement: ±0 .15% on resistance measurement on temperature measurement: ±0 .15% on RTD (temperature) measurement | on voltage measurement: ±0 .2% on temperature measurement:±0 .15% |
| 5 V Backplane Current Consumption (mA) | 125 maximum | 125 maximum |
| 3 .3 V Backplane Current Consumption (mA) | 125 maximum | 125 maximum |
| LED Indicators | OK LED: green indicates backplane power is present . Amber indicates module fault | OK LED: green indicates backplane power is present . Amber indicates module fault |
| Dimensions (W x H x D) | 110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors | 110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors |
