Factory Custom Molded Flexible Hose Screw Grain Suction Machine Grain Screw Elevator Equipment

Product Description

Factory Custom Molded Flexible Hose Screw Grain Suction Machine Grain Screw Elevator Equipment
Product Introduction

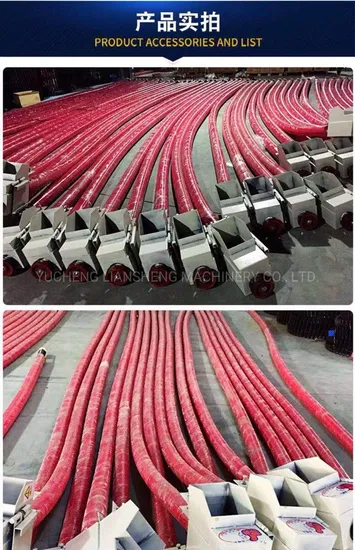

Flexible grain auger screw conveyor with steel screw blade inside is one kind of bulk
grain conveyor adopt the pneumatic and motor power for truck loading and grain
elevator purpose. With the feature of small cubage and easy to carry,it is universally
used by the family farm. It is mainly applied for collecting of wheat,corn,paddy,cereal,
and any other similar granules etc.With single phase motor power,it can loading the
large capacity with low energy consumption and easy to use at home. Screw flight: the material of screw flight is manganese steel, it has good wear-resisting and flexible. Wear-resisting pipe: The material of screw pipe is PVC resin, the PVC resin screw pipe is very good wear-resisting pipe, this will prolong the service lift of screw elevating conveyor. Driving device: Motor, belt pulley, transmission belt and safe cover. Inlet device and discharge device. Pipe diameter: 3.5-6 inches
Length: 2-30 meters
Motor: 3-10KW

Model No.	Length (Meters)	Pipe diameter	Loading	Motor phase-power(kw)	Installation	Structure	Conveying height
			Capacity(t/h)
LS-XLJJ-100-6	6	100mm	5-8	Single phase	Vehicle mounted	Steel screw blade inside	3-4m
				-3kw
LS-XLJ-100-8	8	100mm	5-8	Single phase	Vehicle mounted	Steel screw blade inside	3-4m
				-3kw
LS-XLJ-100-10	10	100mm	5-8	Single phase	Vehicle mounted	Steel screw blade inside	3-4m
				-3kw
YG-XLJ-100-12	12	100mm	5-8	Single phase	Vehicle mounted	Steel screw blade inside	3-4m
				-3kw
LS-XLJ-160-6	6	160mm	15-20	Three phase	Vehicle mounted	Steel screw blade inside	3-4m
				-4kw
LS-XLJ-160-8	8	160mm	15-20	Three phase	Vehicle mounted	Steel screw blade inside	3-4m
				-4kw
LS-XLJ-160-10	10	160mm	15-20	Three phase	Vehicle mounted	Steel screw blade inside	3-4m
				-4kw
LS-XLJ-160-12	12	160mm	15-20	Three phase	Vehicle mounted	Steel screw blade inside	3-4m
				-4kw

RFQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below: Contact: Allen Gao
Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China

---
